ITEM NO.

Nema Tab

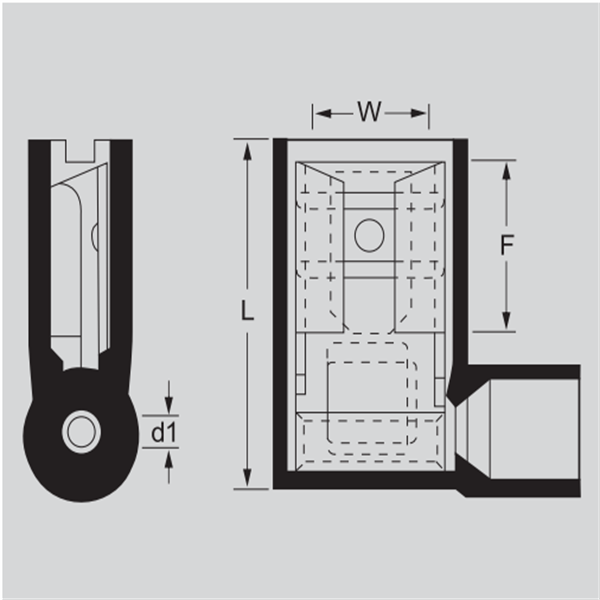

DIMENSION mm

PCS/ PACK

COLOR

EXPLANATION

W

F

L

d1

T

FLDNY1.25-250

0.8X6.35

7.5

8.4

16

1.7

0.5

100

Red

Wire range : 0.5-1.0mm²
A.W.G:(22-18)
Max.current=10A

FLDNY2-250

0.8X6.35

7.5

8.4

16

2.3

0.5

100

Blue

Wire range : 1.5-2.5mm²
A.W.G:(16-14)
Max.current=10A

FLDNYD5.5-250

0.8X6.35

7.5

7.3

18

3.4

0.4

100

Yellow

Wire range : 4-6mm²
A.W.G:(12-10)
Max.current=24A
