Heat shrinkable-Insulated Male Quick Disconnectors
Share This Product:
  • Description
  • Contraction ratio 3:1
  • Excellent conductance performance
  • Excellent impact resistance
  • Good tensile and mechanical damage
  • Stability of high elasticity
  • Waterproof and moistureproof
  • Temperature tolerance range: -55℃~125℃
  • Minimum systolic temperature: 80 degrees centigrade
  • Minimum complete contraction temperature: 200℃

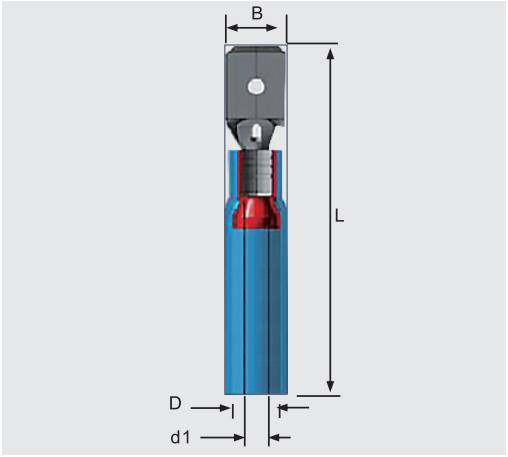

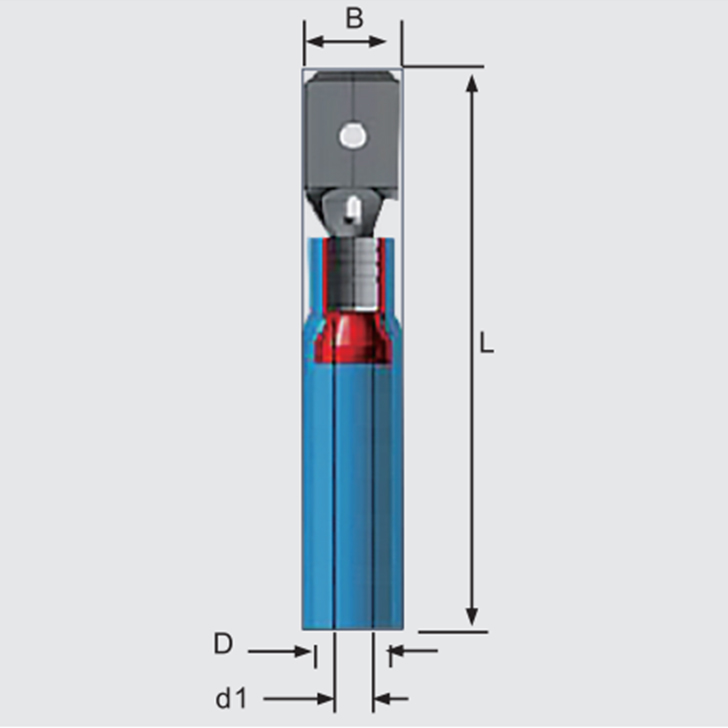

PRODUCT NUMBER D d1 B E L COLOUR GAUGE END THICKNESS
HD-DS-T06R63E 6.2 1.6 6.3*0.8 21 28 RED 0. 5-1. 5mm2(AWG22-18) 0. 4mm
HD-DS-T06R63E 6.2 2.2 6.3*0.8 21 28 BLUE 1. 5-2. 5mm2(AWG16-14) 0. 4mm
HD-DS-T06R63E 6.8 3.4 6.3*0.8 25 32 YELLOW 4. 0-6. 0mm2 (AWG12-10) 0. 4mm
