Heat shrinkable Fully-Insulated Female Quick Disconnectors
Share This Product:
  • Description
  • Contraction ratio 3:1
  • Excellent conductance performance
  • Excellent impact resistance
  • Good tensile and mechanical damage
  • Stability of high elasticity
  • Waterproof and moistureproof
  • Temperature tolerance range: -55℃ ~125℃
  • Minimum systolic temperature: 80 degrees centigrade
  • Minimum complete contraction temperature: 200℃

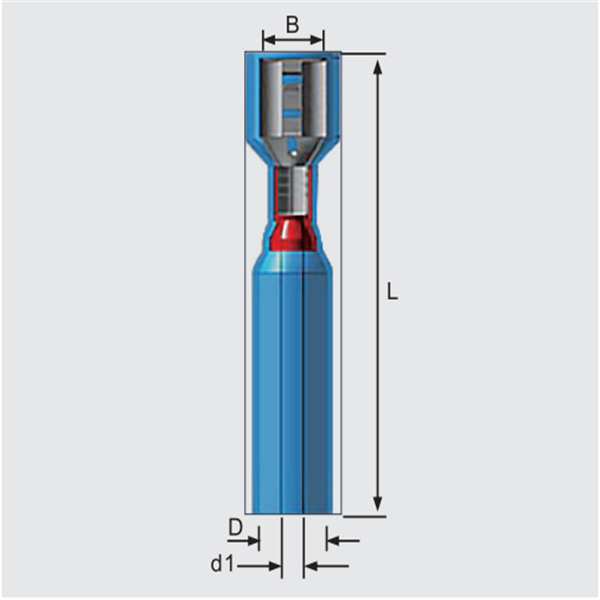

PRODUCT NUMBER

D

d1

B

SCREW SIZE

L MAX

COLOUR

GAUGE

END THICKNESS

HD-DS-P06R63E

6.2

1.6

6.6

6.3*0.8

30

RED

0. 5-1. 5mm2(AWG22-18)

0. 4mm

HD-DS-P06R63E

6.2

2.2

6.6

6.3*0.8

30

BLUE

1. 5-2. 5mm2(AWG16-14)

0. 4mm

HD-DS-P06R63E

6.8

3.4

6.6

6.3*0.8

32

YELLOW

4. 0-6. 0mm2 (AWG12-10)

0. 4mm
