Non-Insulated Blade Terminals

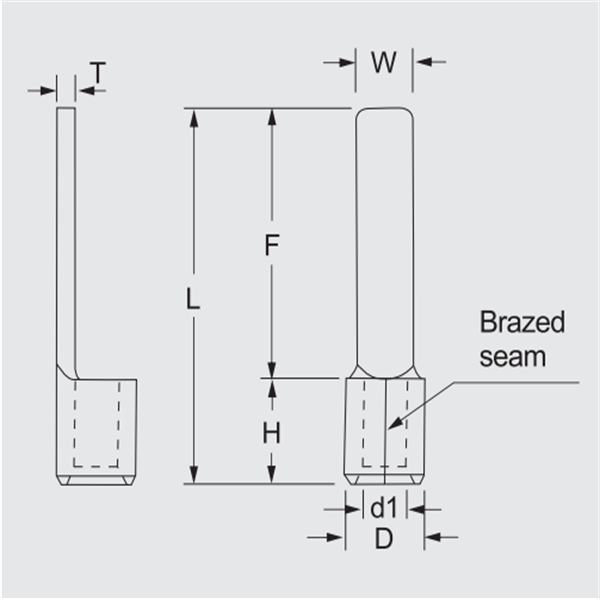

| ITEM NO. | DIMENSION mm | PCS/ PACK | EXPLANATION | ||||||
| W | F | L | H | d1 | D | T | |||
| DBN1.25-10 | 2.3 | 10.0 | 14.8 | 4.8 | 1.7 | 3.4 | 0.8 | 100 |
Wire range : 0.5-1.5mm2 A.W.G.: (22-16) Max.current=19A |
| DBN1.25-14 | 3.0 | 14.0 | 18.8 | ||||||
| DBN1.25-18 | 2.2 | 18.0 | 22.8 | ||||||
| DBN2-10 | 2.4 | 10.0 | 14.8 | 4.8 | 2.3 | 4.0 | 0.8 | 100 |
Wire range : 1.5-2.5mm2 A.W.G.: (16-14) Max.current=27A |
| DBN2-14 | 2.4 | 14.0 | 18.8 | ||||||
| DBN2-18 | 2.2 | 18.0 | 22.8 | ||||||
| DBN5.5-10 | 2.8 | 10.0 | 16.0 | ||||||
| DBN5.5-14 | 4.5 | 14.0 | 20.0 | 6.0 | 3.4 | 5.5 | 1.0 | 100 |
Wire range : 4-6mm2 A.W.G.: (12-10) Max.current=48A |
| DBN5.5-18 | 4.5 | 18.0 | 24.0 | ||||||
