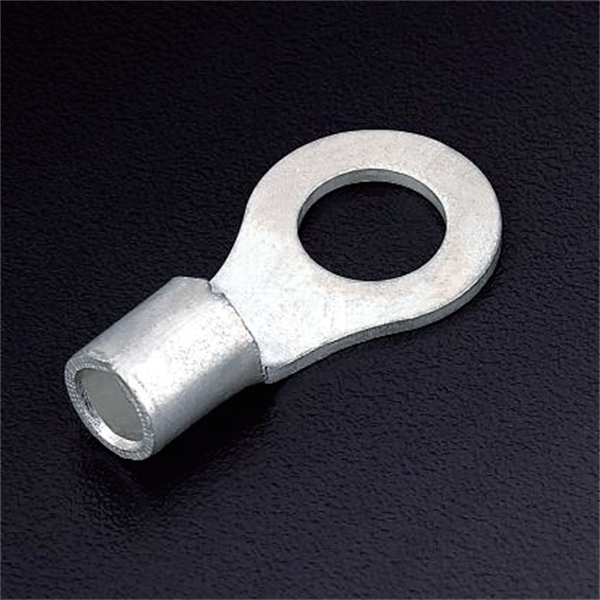

Non-Insulated Ring Terminals

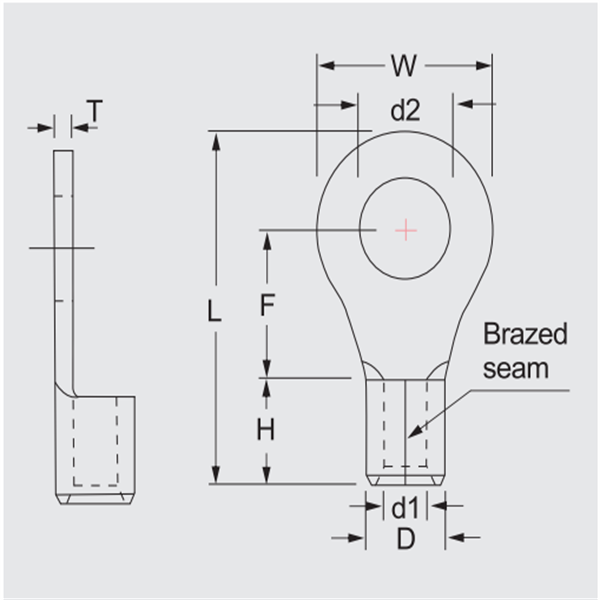

| ITEM NO. | STUD SIZE | DIMENSION mm | PCS/ PACK | EXPLANATION | ||||||||
| Metric | American | d2 | W | F | L | H | d1 | D | T | |||
| RNB1.25-3.2 | 3 | #4 | 3.2 | 5.7 | 4.95 | 12.6 | 4.8 | 1.7 | 3.4 | 0.8 | 100 |
Wire range : O.5-1.5mm2 A.W.G. : (22-16) Max.current=19A |
| RNB1.25-3.5S | 3.5 | #6 | 3.7 | |||||||||
| RNB1.25-3.5M | 3.5 | #6 | 3.7 | 6.6 | 6.3 | 14.4 | ||||||
| RNB1.25-3.5L | 3.5 | #6 | 3.7 | 8.0 | 7.0 | 15.8 | ||||||
| RNB1.25-4S | 4 | #8 | 4.3 | 6.6 | 6.3 | 14.4 | ||||||
| RNB1.25-4L | 4 | #8 | 4.3 | 8.0 | 7.0 | 15.8 | ||||||
| RNB1.25-5 | 5 | #10 | 5.3 | |||||||||
| RNB1.25-5L | 5 | #10 | 5.3 | 9.5 | 7.5 | 17.1 | ||||||
| RNB1.25-6 | 6 | 1/4" | 6.5 | 11.6 | 11.2 | 21.8 | ||||||
| RNB1.25-8 | 8 | 5/16" | 8.5 | |||||||||
| RNB1.25-10 | 10 | 3/8" | 10.5 | 13.6 | 13.9 | 25.5 | ||||||
| RNB1.25-12 | 12 | 1/2" | 13.0 | 19.2 | 16.0 | 30.4 | ||||||
| RNB2-3.2 | 3 | #4 | 3.2 | 6.6 | 6.4 | 14.5 | 4.8 | 2.3 | 4 | 0.8 | 100 |
Wire range : 1.5-2.5mm2 A.W.G. : (16-14) Max.current=27A |
| RNB2-3.5 | 3.5 | #6 | 3.7 | |||||||||
| RNB2-3.5M | 3.5 | #6 | 3.7 | 6.6 | 7.9 | 16.0 | ||||||
| RNB2-3.5L | 3.5 | #6 | 3.7 | 8.5 | 7.75 | 16.8 | ||||||
| RNB2-4S | 4 | #8 | 4.3 | 6.6 | 7.9 | 16.0 | ||||||
| RNB2-4L | 4 | #8 | 4.3 | 8.5 | 7.75 | 16.8 | ||||||
| RNB2-5S | 5 | #10 | 5.3 | |||||||||
| RNB2-5L | 5 | #10 | 5.3 | 9.5 | 7.5 | 17.1 | ||||||
| RNB2-6 | 6 | 1/4" | 6.5 | 12.0 | 11.0 | 21.8 | ||||||
| RNB2-8 | 8 | 5/16" | 8.5 | |||||||||
| RNB2-10 | 10 | 3/8" | 10.5 | 13.6 | 13.9 | 25.5 | ||||||
| RNB2-12 | 12 | 1/2" | 13.0 | 19.2 | 16.0 | 30.4 | ||||||
| RNB3.5-4 | 4 | #8 | 4.3 | 8.0 | 7.7 | 17.7 | 6 | 2.9 | 5.0 | 1.0 | 100 |
Wire range : 2.5-4mm2 A.W.G.: (14-12) Max.current=37A |
| RNB3.5-5S | 5 | #10 | 5.3 | |||||||||
| RNB3.5-6 | 6 | 1/4" | 6.5 | 12.0 | 9.4 | 21.4 | ||||||
| RNB3.5-8 | 8 | 5/16" | 8.5 | 15.0 | 13.5 | 27.0 | ||||||
| RNB5.5-3.5 | 3.5 | #6 | 3.7 | 7 Q | 5.9 | 15.5 | 6.0 | 3.4 | 5.5 | 1.0 | 100 |
Wire range : 4-6mm2 A.W.G.: (12-10) Max.current=48A |
| RNB5.5-4S | 4 | #8 | 4.3 | f .Z | ||||||||
| RNB5.5-4L | 4 | #8 | 4.3 | 9.5 | 8.85 | 19.6 | ||||||
| RNB5.5-5 | 5 | #10 | 5.3 | 9.5 | 8.85 | 19.6 | ||||||
| RNB5.5-6 | 6 | 1/4" | 6.5 | 12.0 | 10.5 | 22.5 | ||||||
| RNB5.5-8 | 8 | 5/16" | 8.5 | 15.0 | 13.5 | 27.0 | ||||||
| RNB5.5-10 | 10 | 3/8" | 10.5 | |||||||||
| RNB5.5-12 | 12 | 1/2" | 13.0 | 19.2 | 16.0 | 31.6 | ||||||
| RNB8-4S | 4 | #8 | 4.3 | 8.0 | 9.3 | 21.8 | 8.5 | 4.5 | 7.2 | 1.2 | 100 |
Wire range : 6-10mm2 A.W.G.: (8) Max.current=62A |
| RNB8-4L | 4 | #8 | 4.3 | 12.0 | 9.3 | 23.8 | ||||||
| RNB8-5S | 5 | #10 | 5.3 | 8.8 | 9.3 | 22.2 | ||||||
| RNB8-5M | 5 | #10 | 5.3 | 12.0 | 9.3 | 23.8 | ||||||
| RNB8-5L | 5 | #10 | 5.3 | 15.0 | 13.8 | 29.8 | ||||||
| RNB8-6S | 6 | 1/4" | 6.5 | 12.0 | 9.3 | 23.8 | ||||||
| RNB8-8 | 8 | 5/16" | 8.5 | 15.0 | 13.8 | 29.8 | ||||||
| RNB8-10 | 10 | 3/8" | 10.5 | |||||||||
| RNB8-12 | 12 | 1/2" | 13.0 | 20.0 | 15.0 | 33.5 | ||||||
| RNB14-4 | 4 | #8 | 4.3 | 12.0 | 13.3 | 29.8 | 10.5 | 5.8 | 9.0 | 1.4 | 100 |
Wire range : 10-16mm2 A.W.G.: (6) Max.current=88A |
| RNB14-5 | 5 | #10 | 5.3 | |||||||||
| RNB14-6S | 6 | 1/4" | 6.5 | |||||||||
| RNB14-8 | 8 | 5/16" | 8.5 | 16.0 | 14.0 | 32.5 | ||||||
| RNB14-10 | 10 | 3/8" | 10.5 | |||||||||
| RNB14-12 | 12 | 1/2" | 13.0 | 22.0 | 19.5 | 41.0 | ||||||
| RNB22-4 | 4 | #8 | 4.3 | 12.2 | 15.1 | 33.2 | 12.0 | 8.3 | 11.5 | 1.6 | 50 |
Wire range : 16-25mm2 A.W.G.: (4) Max.current=115A |
| RNB22-5S | 5 | #10 | 5.3 | |||||||||
| RNB22-5L | 5 | #10 | 5.3 | 16.5 | 13.5 | 33.7 | ||||||
| RNB22-6S | 6 | 1/4" | 6.5 | 12.2 | 15.1 | 33.2 | ||||||
| RNB22-6L | 6 | 1/4" | 6.5 | 16.5 | 13.5 | 33.7 | ||||||
| RNB22-8 | 8 | 5/16" | 8.5 | |||||||||
| RNB22-10 | 10 | 3/8" | 10.5 | |||||||||
| RNB22-12 | 12 | 1/2" | 13.0 | 22.0 | 19.5 | 42.5 | ||||||
| RNB38-5 | 5 | #10 | 5.3 | 15.3 | 17.4 | 39.0 | 14.0 | 9.4 | 13.3 | 1.7 | 20 |
Wire range : 35mm2 A.W.G.: (2) Max.current=160A |
| RNB38-6S | 6 | 1/4" | 6.5 | |||||||||
| RNB38-8S | 8 | 5/16" | 8.5 | 15.3 | 17.4 | 39.0 | ||||||
| RNB38-10S | 10 | 3/8" | 10.5 | 15.3 | 17.4 | 39.0 | ||||||
| RNB38-12 | 12 | 1/2" | 13.0 | 22.0 | 17.7 | 42.7 | ||||||
| RNB60-6 | 6 | 1/4 | 6.4 | 22.0 | 20.7 | 49.7 | 18.0 | 12.0 | 15.4 |
Wire range:50-70mm2 A.W.G:1/0 Max.current=215A |
||
| RNB60-8 | 8 | 5/16 | 8.4 | |||||||||
| RNB 60-10 | 10 | 3/8 | 10.5 | |||||||||
| RNB 60-12 | 12 | 1/2 | 13.0 | |||||||||
| RNB 60-14 | 14 | 9/16 | 15.0 | 32.0 | 23.5 | 57.5 | ||||||
| RNB 60-16 | 16 | 5/8 | 17.0 | |||||||||
| RNB 60-18 | 18 | 11/16 | 19.0 | |||||||||
| RNB 60-20 | 20 | 3/4 | 21.0 | |||||||||
| RNB 70-6 | 6 | 1/4 | 6.4 | 22.0 | 20.0 | 51.0 | 19.0 | 13.5 | 17.5 |
Wire range:70-95mm2 A.W.G:2/0 Max.current=235A |
||
| RNB 70-8 | 8 | 5/16 | 8.4 | |||||||||
| RNB 70-10 | 10 | 3/8 | 10.5 | |||||||||
| RNB 70-12 | 12 | 1/2 | 13.0 | |||||||||
| RNB 70-14 | 14 | 9/16 | 15.0 | 32.0 | 26.0 | 61.0 | ||||||
| RNB 70-16 | 16 | 5/8 | 17.0 | |||||||||
| RNB 70-18 | 18 | 11/16 | 19.0 | |||||||||
| RNB 70-20 | 20 | 3/4 | 21.0 | |||||||||
| RNB80-6 | 6 | 1/4 | 6.4 | 27.0 | 20.7 | 54.2 | 20.0 | 15.0 | 19.5 |
Wire range:95-120mm2 A.W.G:3/0 Max.current=265A |
||
| RNB80-8 | 8 | 5/16 | 8.4 | |||||||||
| RNB 80-10 | 10 | 3/8 | 10.5 | |||||||||
| RNB 80-12 | 12 | 1/2 | 13.0 | |||||||||
| RNB 80-14 | 14 | 9/16 | 15.0 | 32.0 | 32.0 | 68.0 | ||||||
| RNB 80-16 | 16 | 5/8 | 17.0 | |||||||||
| RNB 80-18 | 18 | 11/16 | 19.0 | |||||||||
| RNB 80-20 | 20 | 3/4 | 21.0 | |||||||||
| RNB 100-6 | 6 | 1/4 | 6.4 | 28.5 | 20.4 | 55.6 | 21.0 | 17.0 | 22.5 |
Wire range:120-150mm2 A.W.G:4/0 Max.current=300A |
||
| RNB 100-8 | 8 | 5/16 | 8.4 | |||||||||
| RNB 100-10 | 10 | 3/8 | 10.5 | |||||||||
| RNB 100-12 | 12 | 1/2 | 13.0 | |||||||||
| RNB 100-14 | 14 | 9/16 | 15.0 | 32.0 | 32.0 | 69.0 | ||||||
| RNB 100-16 | 16 | 5/8 | 17.0 | |||||||||
| RNB 100-18 | 18 | 11/16 | 19.0 | |||||||||
| RNB 100-20 | 20 | 3/4 | 21.0 | |||||||||
| RNB 150-8 | 8 | 5/16 | 8.4 | 36.5 | 23.0 | 66.0 | 27.0 | 20.0 | 27.0 |
Wire range:150-185mm2 A.W.G:250/300 Max.current=395A |
||
| RNB 150-10 | 10 | 3/8 | 10.5 | |||||||||
| RNB 150-12 | 12 | 1/2 | 13.0 | |||||||||
| RNB 150-14 | 14 | 9/16 | 15.0 | |||||||||
| RNB 150-16 | 16 | 5/8 | 17.0 | |||||||||
| RNB 150-18 | 18 | 11/16 | 19.0 | 36.0 | 81.0 | |||||||
| RNB 150-20 | 20 | 3/4 | 21.0 | |||||||||
| RNB 180-8 | 8 | 5/16 | 8.4 | 38.5 | 24.5 | 69.0 | 28.5 | 21.0 | 28.6 |
Wire range: 185-240mm2 A.W.G:300/350 Max.current=440A |
||
| RNB 180-10 | 10 | 3/8 | 10.5 | |||||||||
| RNB 180-12 | 12 | 1/2 | 13.0 | |||||||||
| RNB 180-14 | 14 | 9/16 | 15.0 | |||||||||
| RNB 180-16 | 16 | 5/8 | 17.0 | |||||||||
| RNB 180-18 | 18 | 11/16 | 19.0 | 39 | 86.6 | |||||||
| RNB 180-20 | 20 | 3/4 | 21.0 | |||||||||
| RNB 200-8 | 8 | 5/16 | 8.4 | 44.0 | 24.5 | 78.0 | 31.5 | 24.0 | 32.6 |
Wire range:240-300mm2 A.W.G:400/500 Max.current=470A |
||
| RNB 200-10 | 10 | 3/8 | 10.5 | |||||||||
| RNB 200-12 | 12 | 1/2 | 13.0 | |||||||||
| RNB 200-14 | 14 | 9/16 | 15.0 | |||||||||
| RNB 200-16 | 16 | 5/8 | 17.0 | |||||||||
| RNB 200-18 | 18 | 11/16 | 19.0 | 37.5 | 91.0 | |||||||
| RNB 200-20 | 20 | 3/4 | 21.0 | |||||||||
| RNB 325-8 | 8 | 5/16 | 8.4 | 50.5 | 33.5 | 87.5 | 35.5 | 28.5 | 37.1 |
Wire range:300-400mm2 A.W.G:500/600 Max.current=650A |
||
| RNB 325-10 | 10 | 3/8 | 10.5 | |||||||||
| RNB 325-12 | 12 | 7/16 | 13.0 | |||||||||
| RNB 325-14 | 14 | 9/16 | 15.0 | |||||||||
| RNB 325-16 | 16 | 5/8 | 17.0 | |||||||||
| RNB 325-18 | 18 | 11/16 | 19.0 | 45.0 | 105.7 | |||||||
| RNB 325-20 | 20 | 3/4 | 21.0 | |||||||||
| RNB 325-22 | 22 | 7/8 | 23.0 | |||||||||
| RNB 325-24 | 24 | 15/16 | 25.0 | |||||||||
| RNB 325-27 | 27 | 1 | 28.0 | |||||||||
