Non-Insulated Pin Terminals

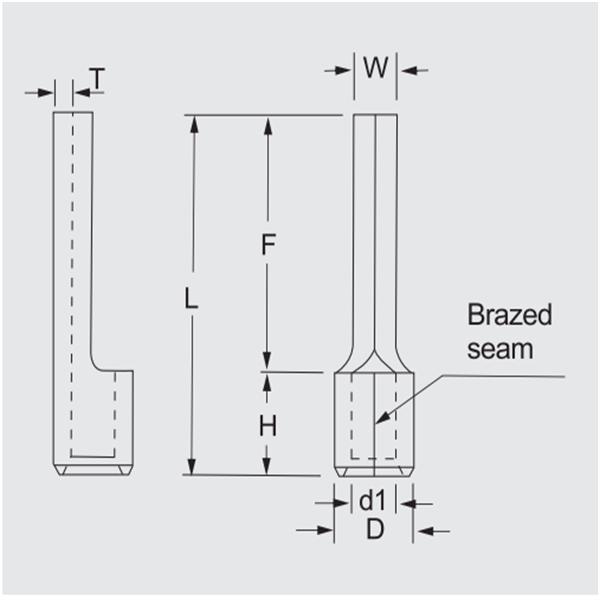

| ITEM NO. | DIMENSION mm | PCS/ PACK | EXPLANATION | ||||||
| W | F | L | H | d1 | D | T | |||
| PTN1.25-10 | 1.9 | 10.0 | 14.8 | 4.8 | 1.7 | 3.4 | 0.8 | 100 |
Wire range : 0.5-1.5mm2 A.W.G.: (22-16) Max.current=19A |
| PTN1.25-12 | 12.0 | 16.8 | |||||||
| PTN1.25-18 | 18.0 | 21.8 | |||||||
| PTN2-10 | 1.9 | 10.0 | 14.8 | 4.8 | 2.3 | 4.0 | 0.8 | 100 |
Wire range : 1.5-2.5mm2 A.W.G.: (16-14) Max.current=27A |
| PTN2-12 | 12.0 | 16.8 | |||||||
| PTN2-18 | 18.0 | 21.8 | |||||||
| PTN5.5-13 | 2.8 | 13.0 | 19.0 | 6.0 | 3.4 | 5.5 | 1.0 | 100 |
Wire range : 4-6mm2 A.W.G.: (12-10) Max.current=48A |
