- Maximum electrical rating: 600 volts
- Maximum temperature： 75°C
- Terminals material: copper
- Plating: Tin plated
- Insulation material: vinyl (PVC)
Vinyl-Insulated Pin Terminals

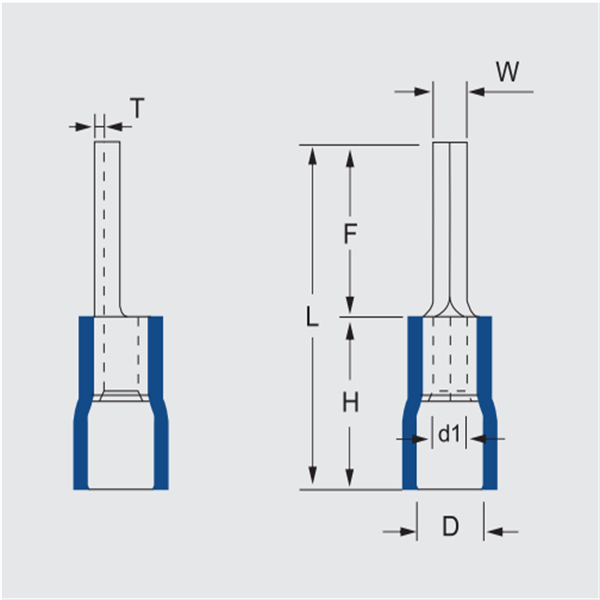

| ITEM NO. | DIMENSION mm | PCS/ PACK | COLOR | EXPLANATION | ||||||
| W | F | L | H | d1 | D | T | ||||
| PTV1.25-10 | 1.9 | 10.0 | 20.0 | 10.0 | 1.7 | 4.2 | 0.8 | 100 | • Red |
Wire range : 0.5-1.5mm2 A.W.G.: (22-16) Max.current=19A |
| PTV1.25-12 | 12.0 | 22.0 | ||||||||
| PTV1.25-18 | 18.0 | 27.0 | ||||||||
| PTV2-10 | 1.9 | 10.0 | 20.0 | 10.0 | 2.3 | 4.7 | 0.8 | 100 | • Blue |
Wire range : 1.5-2.5mm2 A.W.G.: (16-14) Max.current=27A |
| PTV2-12 | 12.0 | 22.0 | ||||||||
| PTV2-18 | 18.0 | 27.0 | ||||||||
| PTV5.5-13 | 2.8 | 13.0 | 26.0 | 13.0 | 3.4 | 6.5 | 1.0 | 100 | •Yellow |
Wire range : 4-6mm2 A.W.G.: (12-10) Max.current=48A |
