- Maximum electrical rating: 600 volts
- Maximum temperature: 75°C
- Terminals material: copper
- Plating: Tin plated
- Insulation material: easy entry vinyl
Vinyl-Insulated Ring Terminals Easy Entry
Vinyl-Insulated Ring Terminals Easy Entry
- 13868749788
- sales@cnhowder.com
- +86-577-62718729
- 13868749788
| ITEM NO. | STUD SIZE | DIMENSION mm | PCS/ PACK | COLOR | EXPLANATION | ||||||||

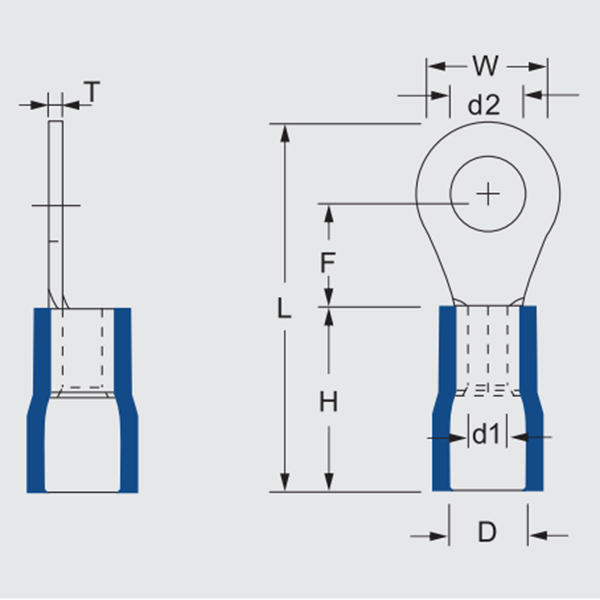

| Metric | American | d2 | W | F | L | H | d1 | D | T | ||||
| ERV1.25-3.2 | 3 | #4 | 3.2 | 5.7 | 4.95 | 17.8 | 10 | 1.7 | 4.2 | 0.8 | 100 | • Red |
Wire range: 0.5-1.5mm2 A.W.G.: (22-16) Max.current=19A |
| ERV1.25-3.5S | 3.5 | #6 | 3.7 | ||||||||||
| ERV1.25-3.5M | 3.5 | #6 | 3.7 | 6.6 | 6.3 | 19.6 | |||||||
| ERV1.25-3.5L | 3.5 | #6 | 3.7 | 8.0 | 7.0 | 21.0 | |||||||
| ERV1.25-4S | 4 | #8 | 4.3 | 6.6 | 6.3 | 19.6 | |||||||
| ERV1.25-4L | 4 | #8 | 4.3 | 8.0 | 7.0 | 21.0 | |||||||
| ERV1.25-5 | 5 | #10 | 5.3 | ||||||||||
| ERV1.25-5L | 5 | #10 | 5.3 | 9.5 | 7.5 | 22.3 | |||||||
| ERV1.25-6 | 6 | 1/4" | 6.5 | 11.6 | 11.2 | 27.0 | |||||||
| ERV1.25-8 | 8 | 5/16 tt | 8.5 | ||||||||||
| ERV1.25-10 | 10 | 3/8" | 10.5 | 13.6 | 13.9 | 30.7 | |||||||
| ERV1.25-12 | 12 | 1/2" | 13.0 | 19.2 | 16.0 | 35.6 | |||||||
| ERV2-3.2 | 3 | #4 | 3.2 | 6.6 | 6.4 | 19.7 | 10.0 | 2.3 | 4.7 | 0.8 | 100 | • Blue |
Wire range: 1.5-2.5mm2 A.W.G.: (16-14) Max.current=27A |
| ERV2-3.5 | 3.5 | #6 | 3.7 | ||||||||||
| ERV2-3.5M | 3.5 | #6 | 3.7 | 6.6 | 7.9 | 21.2 | |||||||
| ERV2-3.5L | 3.5 | #6 | 3.7 | 8.5 | 7.75 | 22.0 | |||||||
| ERV2-4S | 4 | #8 | 4.3 | 6.6 | 7.9 | 21.2 | |||||||
| ERV2-4L | 4 | #8 | 4.3 | 8.5 | 7.75 | 22.0 | |||||||
| ERV2-5S | 5 | #10 | 5.3 | ||||||||||
| ERV2-5L | 5 | #10 | 5.3 | 9.5 | 7.5 | 22.3 | |||||||
| ERV2-6 | 6 | 1/4" | 6.5 | 12.0 | 11.0 | 27.0 | |||||||
| ERV2-8 | 8 | 5/16" | 8.5 | 12.0 | 11.0 | 27.0 | |||||||
| ERV2-10 | 10 | 3/8" | 10.5 | 13.6 | 13.9 | 30.7 | |||||||
| ERV2-12 | 12 | 1/2H | 13.0 | 19.2 | 16.0 | 35.6 | |||||||
| ERV5.5-3.5 | 3.5 | #6 | 3.7 | 7.2 | 5.9 | 22.5 | 13.0 | 3.4 | 6.5 | 1 | 100 | • Yellow |
Wire range: 4-6mm2 A.W.G.: (12-10) Max.current=48A |
| ERV5.5-4S | 4 | #8 | 4.3 | ||||||||||
| ERV5.5-4L | 4 | #8 | 4.3 | 9.5 | 8.85 | 26.6 | |||||||
| ERV5.5-5 | 5 | #10 | 5.3 | ||||||||||
| ERV5.5-6 | 6 | 1/4" | 6.5 | 12.0 | 10.5 | 29.5 | |||||||
| ERV5.5-8 | 8 | 5/16" | 8.5 | 15.0 | 13.5 | 34.0 | |||||||
| ERV5.5-10 | 10 | 3/8" | 10.5 | ||||||||||
| ERV5.5-12 | 12 | 1/2" | 13.0 | 19.2 | 16.0 | 38.6 | |||||||
