- Maximum electrical rating: 600 volts
- Maximum temperature: 75°C
- Terminals material: copper
- Plating: Tin plated
- Insulation material: vinyl (PVC)
Vinyl-Insulated Locking Spade Terminals

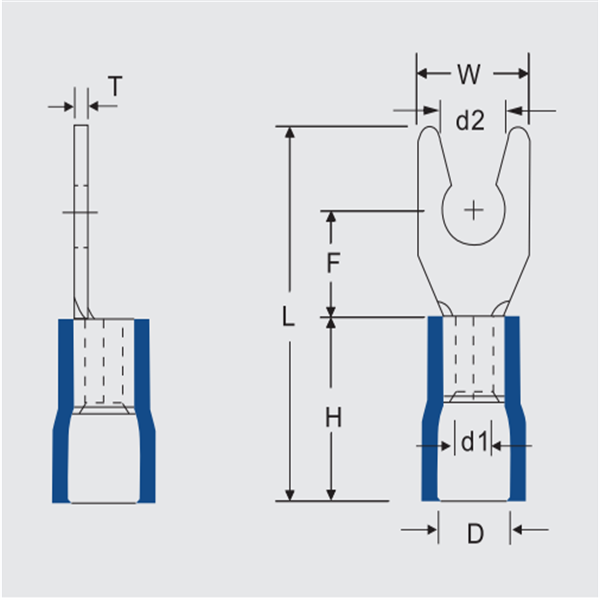

| ITEM NO. | STUD SIZE | DIMENSION mm | PCS/ PACK | COLOR | EXPLANATION | ||||||||
| Metric | American | d2 | W | F | L | H | d1 | D | T | ||||
| LSV1.25-4 | 4 | #8 | 4.3 | 7.2 | 6.5 | 21.2 | 10.0 | 1.7 | 4.2 | 0.8 | 100 | • Red | Wire range : 0.5-1.5mm2 A.W.G. : (22-16) Max.current=19A |
| LSV1.25-5S | 5 | #10 | 5.3 | 8.1 | |||||||||
| LSV2-4 | 4 | #8 | 4.3 | 7.2 | 6.5 | 21.2 | 10.0 | 2.3 | 4.7 | 0.8 | 100 | • Blue | Wire range : 1.5-2.5mm2 A.W.G. : (16-14) Max.current=27A |
| LSV2-5S | 5 | #10 | 5.3 | 8.1 | |||||||||
| LSV5.5-4 | 4 | #8 | 4.3 | 8.3 | 7.0 | 25.5 | 13.0 | 3.4 | 6.5 | 1.0 | 100 | •Yellow |
Wire range : 4-6mm2 A.W.G. : (12-10) Max.current=48A |
| LSV5.5-5 | 5 | #10 | 5.3 | 9.0 | |||||||||
| LSV5.5-6 | 6 | 1/4" | 6.5 | 12.0 | 12.0 | 31.7 | |||||||
