- Maximum electrical rating: 600 volts
- Maximum temperature: 75℃
- Terminals material: copper
- Plating: Tin plated
- Insulation material: vinyl (PVC)

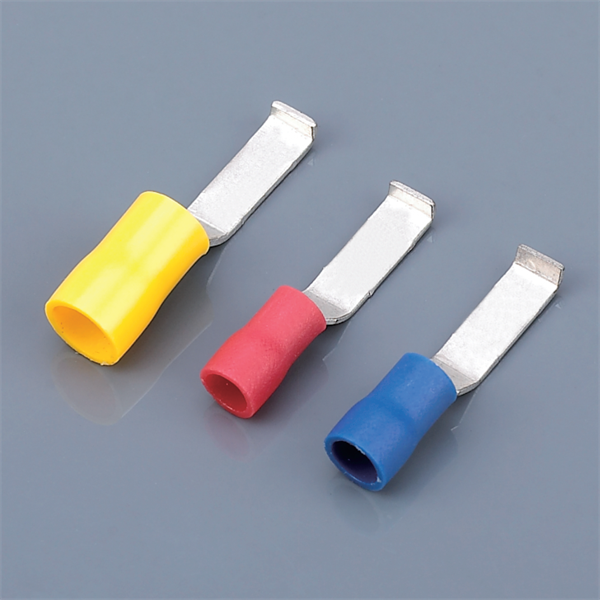

Vinyl-Insulated Lipped Blade Terminals

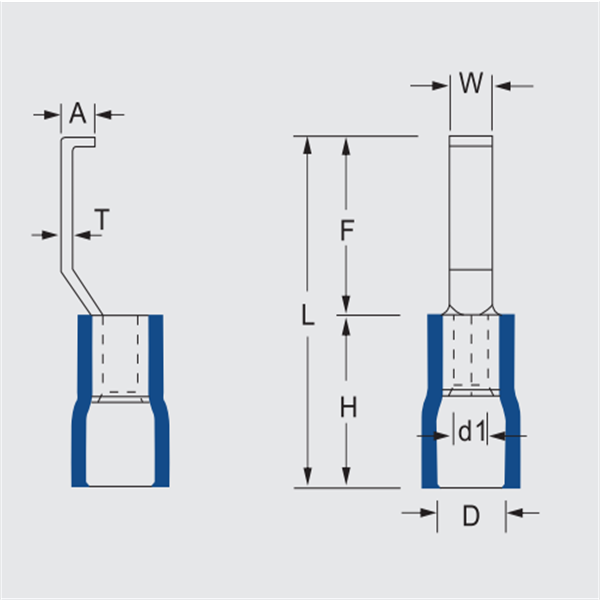

| ITEM NO. | DIMENSION mm | PCS/ PACK | COLOR | EXPLANATION | |||||||
| W | F | L | H | d1 | D | T | A | ||||
| LBV1.25-4.6 | 4.6 | 17.8 | 27.8 | 11.0 | 1.7 | 4.3 | 0.8 | 2.1 | 100 | • Red |
Wire range : 0.5-1.5mm2 A.W.G.: (22-16) Max.current=19A |
| LBV2-4.6 | 4.6 | 17.8 | 27.8 | 11.0 | 2.3 | 4.8 | 0.8 | 2.1 | 100 | • Blue |
Wire range : 1.5-2.5mm2 A.W.G.: (16-14) Max.current=27A |
| LBV5.5-4.6 | 4.6 | 18.2 | 31.2 | 13.0 | 3.4 | 6.7 | 1 | 2.75 | 100 | • Yellow |
Wire range : 4-6mm2 A.W.G.: (12-10) Max.current=48A |
