- Maximum electrical rating: 600 volts
- Maximum temperature: 75°C
- Terminals material: copper
- Plating: Tin plated
- Insulation material: vinyl (PVC)
Vinyl-Insulated Flange Spade Terminals

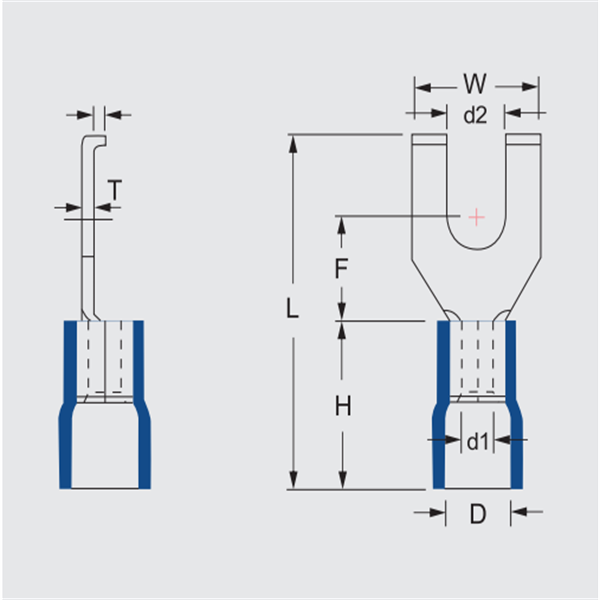

| ITEM NO. | STUD SIZE | DIMENSION mm | PCS/ PACK | COLOR | EXPLANATION | ||||||||
| Metric | American | d2 | W | F | L | H | d1 | D | T | ||||
| FSV1.25-4 | 4 | #8 | 4.3 | 7.5 | 5.1 | 19.5 | 10.0 | 1.7 | 4.2 | 0.8 | 100 | • Red |
Wire range : 0.5-1.5mm2 A.W.G.: (22-16) Max.current=19A |
| FSV1.25-5 | 5 | #10 | 5.3 | ||||||||||
| FSV2-4 | 4 | #8 | 4.3 | 7.5 | 5.2 | 20.2 | 10.0 | 2.3 | 4.7 | 0.8 | 100 | • Blue |
Wire range : 1.5-2.5mm2 A.W.G.: (16-14) Max.current=27A |
| FSV2-5 | 5 | #10 | 5.3 | ||||||||||
| FSV5.5-4 | 4 | #8 | 4.3 | 8.5 | 7.5 | 27.0 | 13.0 | 3.4 | 6.5 | 1.0 | 100 | • Yellow |
Wire range : 4-6mm2 A.W.G.: (12-10) Max.current=48A |
| FSV5.5-5 | 5 | #10 | 5.3 | ||||||||||
