- Maximum electrical rating: 600 volts
- Maximum temperature: 105℃
- Terminals material: copper
- Plating: Tin plated
- Insulation material: easy entry nylon
Nylon-Insulated Ring Terminals Double Crimp
Nylon-Insulated Ring Terminals Double Crimp
- 13868749788
- sales@cnhowder.com
- +86-577-62718729
- 13868749788
| ITEM NO. | STUD SIZE | DIMENSION mm | PCS/ PACK | COLOR | EXPLANATION | ||||||||

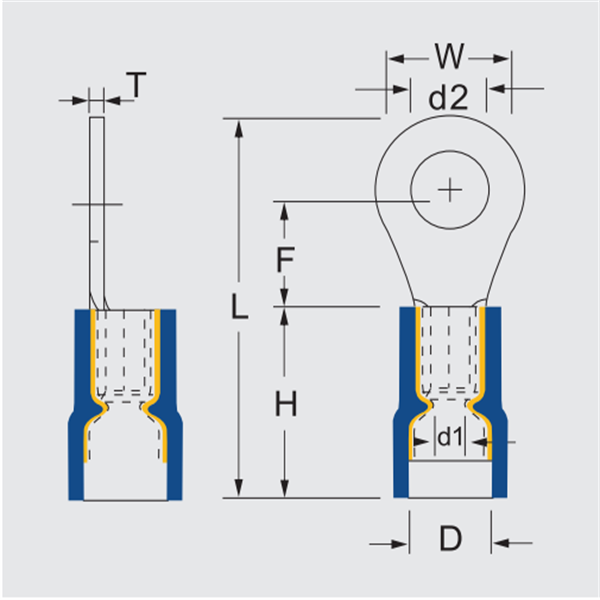

| Metric | American | d2 | W | F | L | H | d1 | D | T | ||||
| RNY1.25-3.2 D | 3 | #4 | 3.2 | 5.7 | 4.95 | 18.8 | 11.0 | 1.7 | 4.3 | 0.8 | 100 | • Red |
Wire range: 0.5-1.5mm2 A.W.G.: (22-16) Max.current=19A |
| RNY1.25-3.5SD | 3.5 | #6 | 3.7 | ||||||||||
| RNY1.25-3.5MD | 3.5 | #6 | 3.7 | 6.6 | 6.3 | 20.6 | |||||||
| RNY1.25-3.5LD | 3.5 | #6 | 3.7 | 8.0 | 7.0 | 22.0 | |||||||
| RNY1.25-4SD | 4 | #8 | 4.3 | 6.6 | 6.3 | 20.6 | |||||||
| RNY1.25-4LD | 4 | #8 | 4.3 | 8.0 | 7.0 | 22.0 | |||||||
| RNY1.25-5D | 5 | #10 | 5.3 | ||||||||||
| RNY1.25-5LD | 5 | #10 | 5.3 | 9.5 | 7.5 | 23.3 | |||||||
| RNY1.25-6D | 6 | 1/4" | 6.5 | 11.6 | 11.2 | 28.0 | |||||||
| RNY1.25-8D | 8 | 5/16" | 8.5 | ||||||||||
| RNY1.25-10D | 10 | 3/8" | 10.5 | 13.6 | 13.9 | 31.7 | |||||||
| RNY1.25-12D | 12 | 1/2" | 13.0 | 19.2 | 16.0 | 36.6 | |||||||
| RNY2-3.2D | 3 | #4 | 3.2 | 6.6 | 6.4 | 20.7 | 11.0 | 2.3 | 4.8 | 0.8 | 100 | • Blue |
Wire range: 1.5-2.5mm2 A.W.G.: (16-14) Max.current=27A |
| RNY2-3.5D | 3.5 | #6 | 3.7 | ||||||||||
| RNY2-3.5MD | 3.5 | #6 | 3.7 | 6.6 | 7.9 | 22.2 | |||||||
| RNY2-3.5LD | 3.5 | #6 | 3.7 | 8.5 | 7.75 | 23.0 | |||||||
| RNY2-4SD | 4 | #8 | 4.3 | 6.6 | 7.9 | 22.2 | |||||||
| RNY2-4LD | 4 | #8 | 4.3 | 8.5 | 7.75 | 23.0 | |||||||
| RNY2-5SD | 5 | #10 | 5.3 | ||||||||||
| RNY2-5LD | 5 | #10 | 5.3 | 9.5 | 7.5 | 23.3 | |||||||
| RNY2-6D | 6 | 1/4" | 6.5 | 12.0 | 11.0 | 28.0 | |||||||
| RNY2-8D | 8 | 5/16 ” | 8.5 | 12.0 | 11.0 | 28.0 | |||||||
| RNY2-10D | 10 | 3/8" | 10.5 | 13.6 | 13.9 | 31.7 | |||||||
| RNY2-12D | 12 | 1/2" | 13.0 | 19.2 | 16.0 | 36.6 | |||||||
| RNY5.5-3.5D | 3.5 | #6 | 3.7 | 7.2 | 5.9 | 22.5 | 13.0 | 3.4 | 6.7 | 1.0 | 100 | • Yellow | Wire range : 4-6mm2 A.W.G. : (12-10) Max.current=48A |
| RNY5.5-4SD | 4 | #8 | 4.3 | ||||||||||
| RNY5.5-4LD | 4 | #8 | 4.3 | 9.5 | 8.85 | 26.6 | |||||||
| RNY5.5-5 D | 5 | #10 | 5.3 | ||||||||||
| RNY5.5-6D | 6 | 1/4" | 6.5 | 12.0 | 10.5 | 29.5 | |||||||
| RNY5.5-8D | 8 | 5/16" | 8.5 | 15.0 | 13.5 | 34.0 | |||||||
| RNY5.5-10D | 10 | 3/8" | 10.5 | ||||||||||
| RNY5.5-12D | 12 | 1/2" | 13.0 | 19.2 | 16.0 | 38.6 | |||||||
