- Maximum electrical rating: 600 volts
- Maximum temperature: 105°C
- Terminals material: copper
- Plating: Tin plated
- Insulation material: easy entry nylon
Nylon-Insulated Hook Terminals
| ITEM NO. | STUD SIZE | DIMENSION mm | PCS/ PACK | COLOR | EXPLANATION | ||||||||

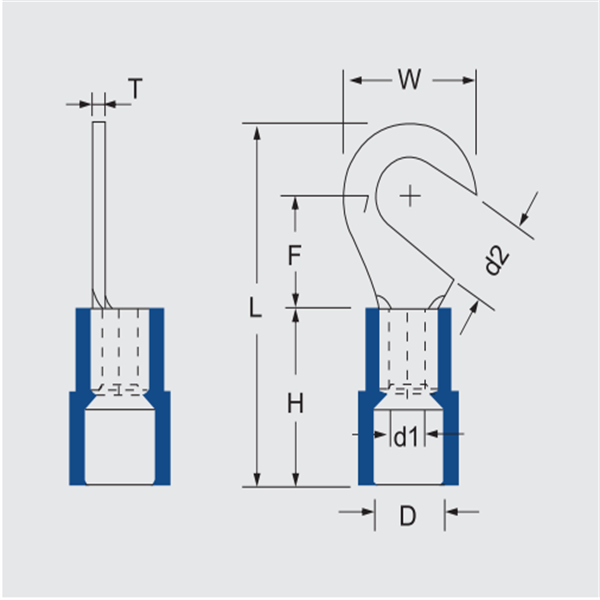

| Metric | American | d2 | W | F | L | H | d1 | D | T | ||||
| HNY1.25-4 | 4 | #8 | 4.3 | 8.0 | 7.0 | 22.0 | 11.0 | 1.7 | 4.3 | 0.8 | 100 | • Red | Wire range : 0.5-1.5mm2 A.W.G. : (22-16) Max.current=19A |
| HNY1.25-5 | 5 | #10 | 5.3 | ||||||||||
| HNY1.25-6 | 6 | 1/4” | 6.5 | 11.6 | 11.2 | 28.0 | |||||||
| HNY2-4 | 4 | #8 | 4.3 | 8.5 | 7.75 | 23.0 | 11.0 | 2.3 | 4.8 | 0.8 | 100 | • Blue | Wire range : 1.5-2.5mm2 A.W.G. : (16-14) Max.current=27A |
| HNY2-5 | 5 | #10 | 5.3 | 9.5 | 7.5 | 23.3 | |||||||
| HNY2-6 | 6 | 1/4” | 6.5 | 12.0 | 11.0 | 28.0 | |||||||
| HNY5.5-4 | 4 | #8 | 4.3 | 9.5 | 8.85 | 26.6 | 13.0 | 3.4 | 6.7 | 1.0 | 100 | • Yellow |
Wire range : 4-6mm2 A.W.G. : (12-10) Max.current=48A |
| HNY5.5-5 | 5 | #10 | 5.3 | ||||||||||
| HNY5.5-6 | 6 | 1/4” | 6.5 | 12.0 | 10.5 | 29.5 | |||||||
