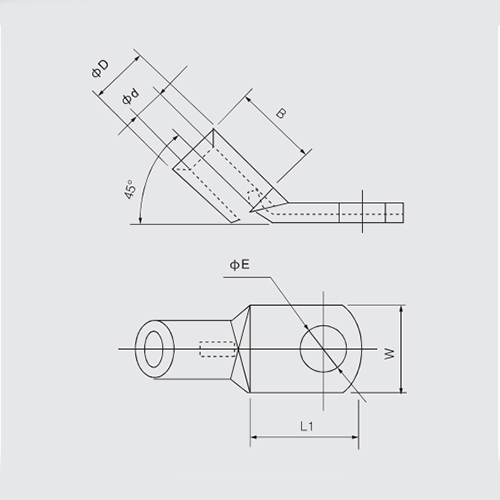

ITEM NO.

φd(mm)

φE(mm)

φD(mm)

W(mm)

B(mm)

L(mm)

T45-10/6

4.7

6.4

6.9

11.9

10.0

12.5

T45-10/8

8.3

13.5

15.5

T45-16/6

5.6

6.4

7.8

11.9

11.0

12.0

T45-16/8

83

13.5

15.5

T45-25/8

7.1

8.3

9.5

14.0

13.0

16.0

T45-25/10

10.5

16.0

19.0

T45-35/8

8.2

8.3

11.0

16.5

16.0

18.0

T45-35/10

10.5

16.5

22.0

T45-50/10

9.5

10.5

12.5

17.9

19.0

22.0

T45-50/12

13.0

17.9

22.0

T45-70/10

11.5

10.5

15.0

21.5

21.0

22.0

T45-70/12

13.0

21.5

22.0

T45-95/14

13.5

14.5

17.0

24.7

24.0

33.0

T45-95/16

16.5

24.7

33.0

T45-120/14

15.6

14.5

20.0

28.9

27.0

33.0

T45-120/16

16.5

28.9

33.0

T45-150/14

16.5

14.5

21.0

30.4

32.0

33.0

T45-150/16

16.5

30.4

33.0

T45-185/16

18.4

16.5

23.6

34.0

34.0

35.0

T45-240/16

21.2

16.5

26.4

38.5

38.0

35.0

S-T45-10/6

4.7

6.4

6.8

11.9

10.0

13.0

S-T45-10/8

83

15.0

16.0

S-T45-16/6

5.6

6.4

7.8

11.9

11.0

13.0

S-T45-16/8

8.3

15.0

15.5

S-T45-25/8

7.1

8.3

9.4

15.0

13.0

16.0

S-T45-25/10

10.5

18.0

21.0

S-T45-35/8

8.7

8.3

11.3

16.0

16.0

17.0

S-T45-35/10

10.5

19.0

21.0

S-T45-50/10

9.8

10.5

12.6

20.0

19.0

21.0

S-T45-50/12

13.0

21.0

25.0

S-T45-70/10

11.5

10.5

17.7

21.5

21.0

21.0

S-T45-70/12

13.0

21.5

23.0

S-T45-95/14

13.5

14.5

16.9

24.7

24.0

28.0

S-T45-95/16

16.5

27.0

31.0

S-T45-120/14

15.6

14.5

19.9

26.5

26.5

30.0

S-T45-120/16

16.5

28.9

33.0

S-T45-150/14

16.5

14.5

20.9

30.4

32.0

34.0

S-T45-150/16

16.5

30.4

34.0

S-T45-185/16

18.8

16.5

23.7

34.0

34.0

35.0

S-T45-240/16

21.2

16.5

26.2

38.4

38.0

35.0
