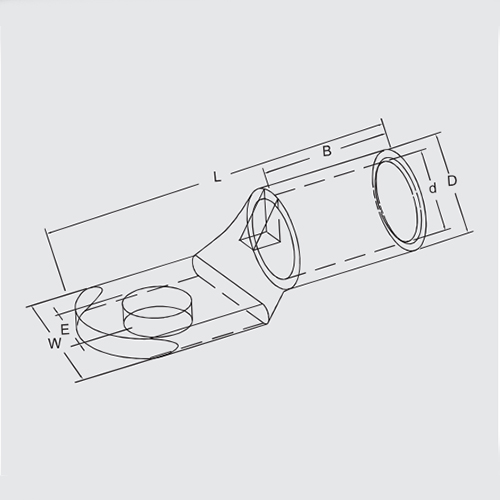

ITEM NO. |
φd(mm) |
φE(mm) |
φD(mm) |
W(mm) |
B(mm) |
L(mm) |
|
JM2.5-4 |
2.6 |
4.2 |
3.9 |
8.7 |
7.0 |
20.0 |
|
JM2.5-6 |
6.5 |
10.0 |
20.0 |
|||
|
JM4-4 |
3.2 |
4.2 |
4.4 |
10.0 |
8.0 |
22.0 |
|
JM4-5 |
5.2 |
10.0 |
22.0 |
|||
|
JM4-6 |
6.5 |
10.0 |
22.0 |
|||
|
JM6-5 |
3.7 |
5.2 |
5.5 |
10.0 |
10.0 |
24.0 |
|
JM6-6 |
6.5 |
12.0 |
24.0 |
|||
|
JM6-8 |
8.4 |
12.5 |
24.0 |
|||
|
JM10-5 |
4.5 |
5.2 |
6.2 |
12.0 |
10.0 |
27.0 |
|
JM10-6 |
6.5 |
12.0 |
27.0 |
|||
|
JM10-8 |
8.4 |
125 |
27.0 |
|||
|
JM10-10 |
10.3 |
15.0 |
29.0 |
|||
|
JM16-6 |
5.7 |
6.5 |
7.3 |
12.0 |
12.0 |
30.0 |
|
JM16-8 |
8.4 |
12.5 |
30.0 |
|||
|
JM16-10 |
10.5 |
16.0 |
32.0 |
|||
|
JM16-12 |
13.0 |
17.0 |
32.0 |
|||
|
JM25-6 |
7.2 |
6.5 |
8.8 |
13.0 |
15.0 |
34.0 |
|
JM25-8 |
8.4 |
15.0 |
34.0 |
|||
|
JM25-10 |
10.5 |
16.0 |
34.0 |
|||
|
JM25-12 |
13.0 |
18.0 |
36.0 |
|||
|
JM35-6 |
8.5 |
6.5 |
10.6 |
16.0 |
16.0 |
38.0 |
|
JM35-8 |
8.4 |
16.0 |
38.0 |
|||
|
JM35-10 |
10.5 |
16.0 |
38.0 |
|||
|
JM35-12 |
13.0 |
18.0 |
38.0 |
|||
|
JM50-6 |
9.8 |
6.5 |
12.3 |
18.0 |
19.0 |
44.0 |
|
JM50-8 |
8.4 |
18.0 |
44.0 |
|||
|
JM50-10 |
10.5 |
18.0 |
44.0 |
|||
|
JM50-12 |
13.0 |
20.0 |
44.0 |
|||
|
JM70-8 |
11.5 |
8.4 |
14.2 |
21.0 |
22.0 |
50.0 |
|
JM70-10 |
10.5 |
21.0 |
50.0 |
|||
|
JM70-12 |
13.0 |
210 |
50.0 |
|||
|
JM70-14 |
14.5 |
21.0 |
50.0 |
|||
|
JM95-10 |
13.7 |
10.5 |
16.7 |
25.0 |
25.0 |
57.0 |
|
JM95-12 |
13.0 |
|||||
|
JM95-14 |
14.5 |
|||||
|
JM120-10 |
15.0 |
10.5 |
18.6 |
27.0 |
26.0 |
63.5 |
|
JM120-12 |
13.0 |
|||||
|
JM120-14 |
14.7 |
|||||
|
JM120-16 |
17.0 |
|||||
|
JM150-10 |
16.7 |
10.5 |
20.6 |
30.0 |
30.0 |
71.0 |
|
JM150-12 |
13.0 |
|||||
|
JM150-14 |
14.7 |
|||||
|
JM150-16 |
17.0 |
|||||
|
JM185-12 |
18.5 |
13.0 |
22.6 |
34.0 |
32.0 |
79.0 |
|
JM185-14 |
14.7 |
|||||
|
JM185-16 |
17.0 |
|||||
|
JM240-12 |
21.0 |
13.0 |
25.6 |
38.0 |
40.0 |
92.0 |
|
JM240-14 |
14.7 |
|||||
|
JM240-16 |
17.0 |
|||||
|
JM240-20 |
21.0 |
|||||
|
JM300-12 |
24.0 |
13.0 |
29.5 |
43.0 |
44.0 |
102.0 |
|
JM300-14 |
14.7 |
|||||
|
JM300-16 |
17.0 |
|||||
|
JM300-20 |
21.0 |
|||||
|
JM400-12 |
27.0 |
13.0 |
33.4 |
48.5 |
50.0 |
113.0 |
|
JM400-14 |
14.7 |
|||||
|
JM400-16 |
17.0 |
|||||
|
JM400-20 |
21.0 |
|||||
|
JM500-14 |
30.0 |
14.7 |
37.3 |
55.0 |
50.0 |
123.0 |
|
JM500-16 |
17.0 |
|||||
|
J M 500-20 |
21.0 |
|||||
|
JM630-16 |
35.0 |
17.0 |
44.1 |
65.0 |
65.0 |
135.0 |
|
JM630-18 |
19.0 |
|||||
|
J M 630-20 |
21.0 |
