PRODUCT NUMBER |
Ring color |

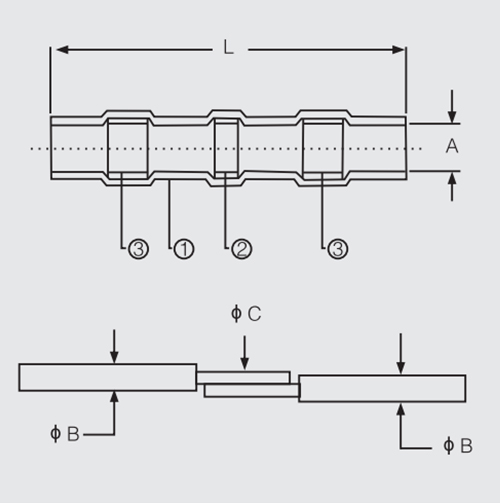

L(mm) |
Number of tin rings |
øA Minimum inner diameter (mm) |
Line number (mm) |
Gauge AWG (mm2) |
||
|
B Minimum diameter |
B maximum diameter C maximum diameter |
C Minimum diameter |
||||||
|
HD-SST-100-01 |
White |
26 |
1 |
1.7 |
0.4 |
1.7 |
0.76 |
26-24(0. 25-0. 5) |
|
HD-SST-100-02 |
Red |
40 |
1 |
2.7 |
1.3 |
2.7 |
1.2 |
22-18(0. 5-1. 5) |
|
HD-SST-100-03 |
Blue |
40 |
1 |
4.5 |
1.8 |
4.5 |
2. 0 |
16-14(1. 5-2. 5) |
|
HD-SST-100-04 |
Yellow |
40 |
1 |
6.0 |
2.8 |
6.0 |
3.4 |
12-10(4. 0-6. 0) |
