Vinyl-Insulated Butt Splice Connectors

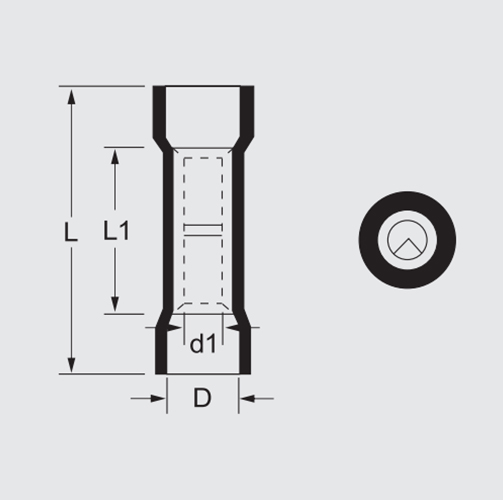

| ITEM NO. | DIMENSION mm | Imax | WIRE RANGE | PCS/ PACK | COLOR | EXPLANATION | ||||
| L | L1 | D | d1 | A. W.G | mm2 | |||||
| BV1.25 | 24.6 | 15.0 | 4.2 | 2.15 | 19A | 22-16 | 0.5-1.5 | 100 | • Red |
Wire range: 0.5~ 1.5mm2 A.W.G = 22-16 |
| BV2 | 24.6 | 15.0 | 4.7 | 2.75 | 27A | 16-14 | 1.5-2.5 | 100 | • Blue |
Wire range: 1.5~2.5mm2 A.W.G = 16-14 |
| BV5.5 | 26.0 | 15.0 | 6.3 | 4.25 | 48A | 10-12 | 4-6 | 100 | •Yellow |
Wire range: 4~6mm2 A.W.G = 12-10 |
| BV8 | 35.0 | 21.0 | 8.5 | 5 | 62A | 8(8) | 6-10 | 100 | • Red |
Wire range: 8mm2 A.W.G = 8 |
| BV14 | 45.0 | 26.0 | 10.5 | 6.6 | 88A | 14(6) | 10-16 | 50 | •Blue |
Wire range: 14mm2 A.W.G = 6 |
| BV22 | 52.0 | 29.0 | 12.5 | 8.0 | 115A | 22(4) | 16-25 | 50 | • Yellow |
Wire range: 22mm2 A.W.G = 4 |
| BV38 | 55.0 | 32.0 | 15.5 | 10.0 | 160A | 38(2) | 25-35 | 50 | • Red |
Wire range: 38mm2 A.W.G = 2 |
