ITEM NO.

Nema Tab

DIMENSION mm

PCS/ PACK

COLOR

EXPLANATION

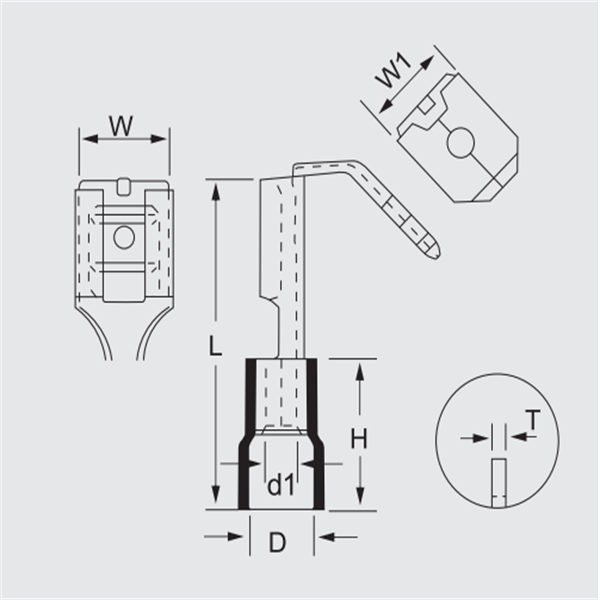

W

W1

L

H

d1

D

T

PBDD1.25-250

0.8X6.35

7.5

6.3

21.5

10.0

1.7

3.8

0.4

100

• Red

Wire range : 0.5-1.5mm²
A. W. G : (22-16)
Max.current=10A

PBDD2-250

0.8X6.35

7.5

6.3

21.5

10.0

2.3

4.3

0.4

100

• Blue

Wire range : 1.5-2.5mm²
A.W.G : (16-14)
Max.current=15A

PBDD5.5-250

0.8X6.35

7.5

6.3

24.0

13.0

3.4

5.6

0.4

100

• Yellow

Wire range : 4-6mm²
A.W.G : (12-10)
Max.current=24A
