Vinyl-Insulated Bullet-Male Quick Disconnects
Share This Product:
  • Description
  • Maximum electrical rating: 75°C, 300V
  • Insulation: Vinyl
  • Terminal Body: Brass
  • Plating: Tin

ITEM NO.

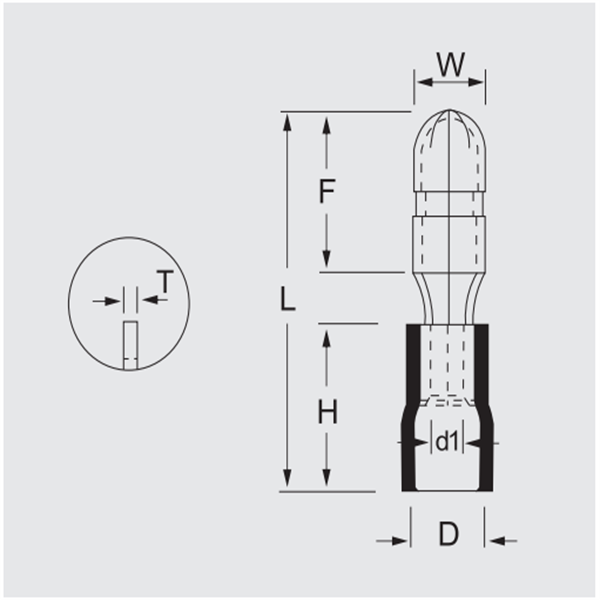

DIMENSION mm

PCS/ PACK

COLOR

EXPLANATION

W

F

L

H

d1

D

T

MPD1.25-156

4.0

9.0

21.0

10.0

1.7

3.8

0.4

100

•  Red

Wire range : 0.5-1.5mm2
A.W.G : (22-16)
Max.current=10A

MPD2-156

4.0

9.0

21.0

10.0

2.3

4.3

0.4

100

• Blue

Wire range : 1.5-2.5mm2
A.W.G : (16-14)
Max.current=15A

MPD2-195

5.0

9.0

21.0

MPD5.5-195

5.0

9.0

24.0

13.0

3.4

5.6

0.4

100

•Yellow

Wire range : 4-6mm2
A.W.G : (12-10)
Max.current=24A
