Vinyl-Fully Insulated Female Quick Disconnects
Share This Product:
  • Description
  • Maximum electrical rating: 75°C, 300V
  • Insulation: Vinyl
  • Terminal Body: Brass
  • Plating: Tin

ITEM NO.

Nema Tab

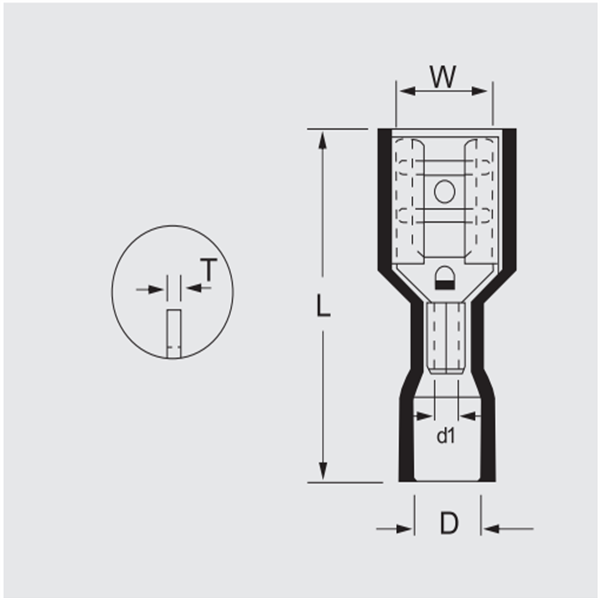

DIMENSION mm

PCS/ PACK

COLOR

EXPLANATION

W

L

d1

D

T

FDFD1.25-110(5)

0.5X2.8

3.8

19.0

1.7

3.7

0.3

100

• Red

Wire range : 0.5-1.5mm2
A.W.G : (22-16)
Max.current=10A

FDFD1.25-110(8)

0.8X 2.8

FDFD1.25-187(5)

0.5 X 4.75

5.8

20.0

0.35

FDFD1.25-187(8)

0.8X4.75

FDFD1.25-250

0.8X 6.35

7.5

21.5

0.4

FDFD2-110(5)

0.5X 2.8

3.8

19

2.3

4.2

0.3

100

• Blue

Wire range : 1.5-2.5mm2
A.W.G : (16-14)
Max.current=15A

FDFD2-110(8)

0.8X 2.8

FDFD2-187(5)

0.5 X 4.75

5.8

20

0.35

FDFD2-187(8)

0.8X 4.75

FDFD2-250

0.8X 6.35

7.5

21.5

0.4

FDFD5.5-250

0.8X 6.35

7.5

25

3.4

5.6

0.4

100

• Yellow

Wire range : 4-6mm2
A.W.G : (12-10)
Max.current=24A
