- Maximum electrical rating: 600 volts
- Maximum temperature: 105°C
- Terminals material: copper
- Plating: Tin plated
- Insulation material: easy entry nylon
Nylon-Insulated Spade Terminals Double Crimp
Nylon-Insulated Spade Terminals Double Crimp
- 13868749788
- sales@cnhowder.com
- +86-577-62718729
- 13868749788

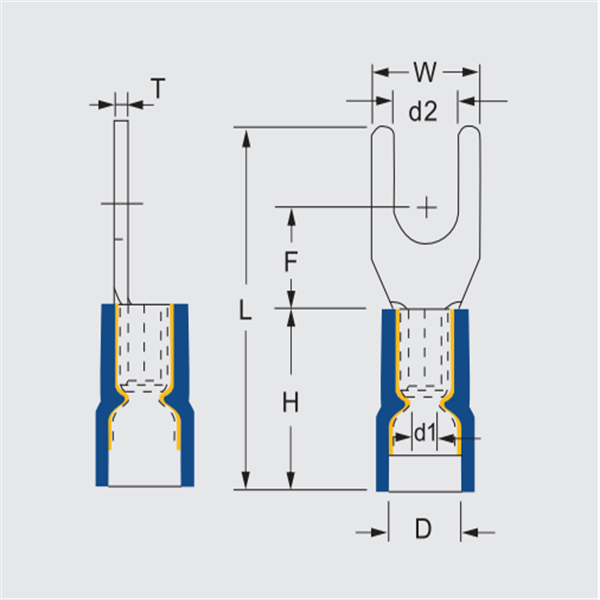

| ITEM NO. | STUD SIZE | DIMENSION mm | PCS/ PACK | COLOR | EXPLANATION | ||||||||
| Metric | American | d2 | W | F | L | H | d1 | D | T | ||||
| SNY1.25-3.2D | 3 | #4 | 3.2 | 5.7 | 6.5 | 22.2 | 11.0 | 1.7 | 4.3 | 0.8 | 100 | • Red |
Wire range: 0.5-1.5mm2 A.W.G.: (22-16) Max.current=19A |
| SNY1.25-3.5SD | 3.5 | #6 | 3.7 | ||||||||||
| SNY1.25-3.5LD | 3.5 | #6 | 3.7 | 6.4 | |||||||||
| SNY1.25-4SD | 4 | #8 | 4.3 | 6.4 | |||||||||
| SNY1.25-4MD | 4 | #8 | 4.3 | 7.2 | |||||||||
| SNY1.25-4LD | 4 | #8 | 4.3 | 8.1 | |||||||||
| SNY1.25-5SD | 5 | #10 | 5.3 | ||||||||||
| SNY1.25-5LD | 5 | #10 | 5.3 | 9.5 | |||||||||
| SNY1.25-6SD | 6 | 1/4" | 6.5 | ||||||||||
| SNY1.25-6LD | 6 | 1/4" | 6.5 | 12.0 | 11.0 | 28.2 | |||||||
| SNY1.25-8D | 8 | 5/16" | 8.5 | 13.5 | 11.5 | 28.0 | |||||||
| SNY2-3.2D | 3.0 | #4 | 3.2 | 5.7 | 6.5 | 22.2 | 11.0 | 2.3 | 4.8 | 0.8 | 100 | • Blue |
Wire range: 1.5-2.5mm2 A.W.G.: (16-14) Max.current=27A |
| SNY2-3.5SD | 3.5 | #6 | 3.7 | ||||||||||
| SNY2-3.5LD | 4 | #6 | 3.7 | 6.0 | |||||||||
| SNY2-4SD | 4 | #8 | 4.3 | 6.4 | |||||||||
| SNY2-4MD | 4 | #8 | 4.3 | 7.2 | |||||||||
| SNY2-4LD | 4 | #8 | 4.3 | 8.1 | |||||||||
| SNY2-5SD | 5 | #10 | 5.3 | ||||||||||
| SNY2-5LD | 5 | #10 | 5.3 | 9.5 | |||||||||
| SNY2-6SD | 6 | 1/4" | 6.5 | ||||||||||
| SNY2-6LD | 6.0 | 1/4" | 6.5 | 12.0 | 11.0 | 28.2 | |||||||
| SNY2-8D | 8 | 5/16" | 8.5 | 13.5 | 11.5 | 28.0 | |||||||
| SNY5.5-3.5D | 3.5 | #6 | 3.7 | 8.3 | 7.0 | 25.5 | 13.0 | 3.4 | 6.7 | 1.0 | 100 | • Yellow |
Wire range :4-6mm2 A.W.G. : (12-10) Max.current=48A |
| SNY5.5-4SD | 4 | #8 | 4.3 | 8.3 | 7.0 | 25.5 | |||||||
| SNY5.5-4LD | 4 | #8 | 4.3 | 9.0 | 7.0 | 25.5 | |||||||
| SNY5.5-5D | 5 | #10 | 5.3 | ||||||||||
| SNY5.5-6SD | 6 | 1/4" | 6.5 | ||||||||||
| SNY5.5-6LD | 6 | 1/4" | 6.5 | 12.0 | 12.0 | 31.7 | |||||||
| SNY5.5-8D | 8 | 5/16" | 8.5 | 14.0 | 11.5 | 30.7 | |||||||
|
ITEM NO. |
STUD SIZE |
DIMENSION mm |
PCS/ PACK |
COLOR |
EXPLANATION |
||||||||
|
Metric |
American |
d2 |
W |
F |
L |
H |
d1 |
D |
T |
||||
|
SNY1.25-3.2D |
3 |
#4 |
3.2 |
5.7 |
6.5 |
22.2 |
11.0 |
1.7 |
4.3 |
0.8 |
100 |
• Red |
Wire range: 0.5-1.5mm2 |
|
SNY1.25-3.5SD |
3.5 |
#6 |
3.7 |
||||||||||
|
SNY1.25-3.5LD |
3.5 |
#6 |
3.7 |
6.4 |
|||||||||
|
SNY1.25-4SD |
4 |
#8 |
4.3 |
6.4 |
|||||||||
|
SNY1.25-4MD |
4 |
#8 |
4.3 |
7.2 |
|||||||||
|
SNY1.25-4LD |
4 |
#8 |
4.3 |
8.1 |
|||||||||
|
SNY1.25-5SD |
5 |
#10 |
5.3 |
||||||||||
|
SNY1.25-5LD |
5 |
#10 |
5.3 |
9.5 |
|||||||||
|
SNY1.25-6SD |
6 |
1/4" |
6.5 |
||||||||||
|
SNY1.25-6LD |
6 |
1/4" |
6.5 |
12.0 |
11.0 |
28.2 |
|||||||
|
SNY1.25-8D |
8 |
5/16" |
8.5 |
13.5 |
11.5 |
28.0 |
|||||||
|
SNY2-3.2D |
3.0 |
#4 |
3.2 |
5.7 |
6.5 |
22.2 |
11.0 |
2.3 |
4.8 |
0.8 |
100 |
• Blue |
Wire range: 1.5-2.5mm2 |
|
SNY2-3.5SD |
3.5 |
#6 |
3.7 |
||||||||||
|
SNY2-3.5LD |
4 |
#6 |
3.7 |
6.0 |
|||||||||
|
SNY2-4SD |
4 |
#8 |
4.3 |
6.4 |
|||||||||
|
SNY2-4MD |
4 |
#8 |
4.3 |
7.2 |
|||||||||
|
SNY2-4LD |
4 |
#8 |
4.3 |
8.1 |
|||||||||
|
SNY2-5SD |
5 |
#10 |
5.3 |
||||||||||
|
SNY2-5LD |
5 |
#10 |
5.3 |
9.5 |
|||||||||
|
SNY2-6SD |
6 |
1/4" |
6.5 |
||||||||||
|
SNY2-6LD |
6.0 |
1/4" |
6.5 |
12.0 |
11.0 |
28.2 |
|||||||
|
SNY2-8D |
8 |
5/16" |
8.5 |
13.5 |
11.5 |
28.0 |
|||||||
|
SNY5.5-3.5D |
3.5 |
#6 |
3.7 |
8.3 |
7.0 |
25.5 |
13.0 |
3.4 |
6.7 |
1.0 |
100 |
• Yellow |
Wire range :4-6mm2 |
|
SNY5.5-4SD |
4 |
#8 |
4.3 |
8.3 |
7.0 |
25.5 |
|||||||
|
SNY5.5-4LD |
4 |
#8 |
4.3 |
9.0 |
7.0 |
25.5 |
|||||||
|
SNY5.5-5D |
5 |
#10 |
5.3 |
||||||||||
|
SNY5.5-6SD |
6 |
1/4" |
6.5 |
||||||||||
|
SNY5.5-6LD |
6 |
1/4" |
6.5 |
12.0 |
12.0 |
31.7 |
|||||||
|
SNY5.5-8D |
8 |
5/16" |
8.5 |
14.0 |
11.5 |
30.7 |
|||||||
