- Maximum electrical rating: 600 volts
- Maximum temperature: 105°C
- Terminals material: copper
- Plating: Tin plated
- Insulation material: easy entry nylon
Nylon-Insulated Blade Terminals

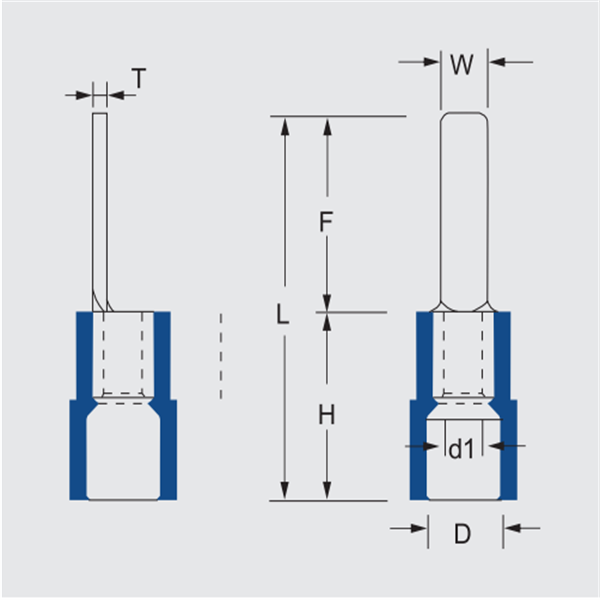

| ITEM NO. | DIMENSION mm | PCS/ PACK | COLOR | EXPLANATION | ||||||
| W | F | L | H | d1 | D | T | ||||
| DBNY1.25-10 | 2.3 | 10.0 | 21.0 | 11.0 | 1.7 | 4.3 | 0.8 | 100 | • Red |
Wire range : 0.5-1.5mm2 A.W.G.: (22-16) Max.current=19A |
| DBNY1.25-14 | 3.0 | 14.0 | 25.0 | |||||||
| DBNY1.25-18 | 2.2 | 18.0 | 29.0 | |||||||
| DBNY2-10 | 2.4 | 10.0 | 21.0 | 11.0 | 2.3 | 4.8 | 0.8 | 100 | • Blue |
Wire range : 1.5-2.5mm2 A.W.G.: (16-14) Max.current=27A |
| DBNY2-14 | 2.4 | 14.0 | 25.0 | |||||||
| DBNY2-18 | 2.2 | 18.0 | 29.0 | |||||||
| DBNY5.5-10 | 2.8 | 10.0 | 23.0 | 13.0 | 3.4 | 6.7 | 1.0 | 100 | • Yellow |
Wire range : 4-6mm2 A.W.G.: (12-10) Max.current=48A |
| DBNY5.5-14 | 4.5 | 14.0 | 27.0 | |||||||
| DBNY5.5-18 | 4.5 | 18.0 | 31.0 | |||||||
