Nylon-Fully Insulated Male Quick Disconnects
Share This Product:
  • Description
  • Maximum electrical rating: 105°C, 300V
  • Insulation: Nylon
  • Terminal Body: Brass
  • Plating: Tin

ITEM NO.

Nema Tab

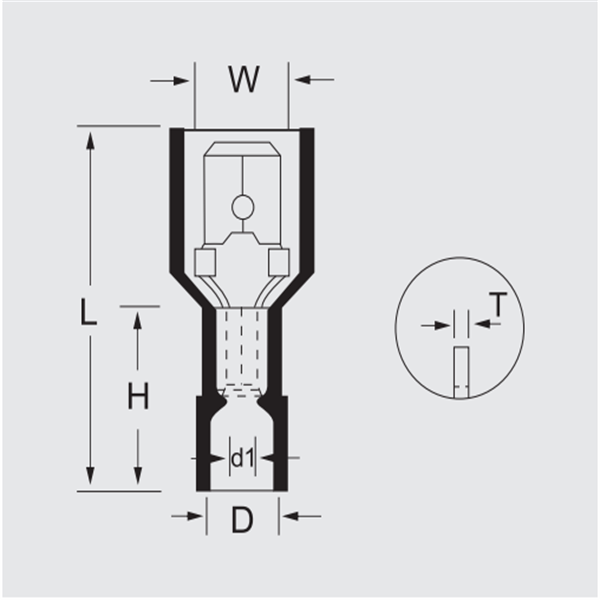

DIMENSION mm

PCS/ PACK

COLOR

EXPLANATION

W

L

H

d1

D

T

MDFN1.25-250

0.8X6.35

6.35

24.0

11.0

1.7

4.0

0.8

100

• Red

Wire range : 0.5-1.5mm2
A.W.G: (22-16)
Max.current= 10A

MDFN2-250

0.8X6.35

6.35

24.0

11.0

2.3

4.5

0.8

100

• Blue

Wire range : 1.5-2.5mm2
A.W.G: (16-14)
Max.current=15A

MDFN5.5-250

0.8X6.35

6.35

25.0

13.0

3.4

6.3

0.4

100

• Yellow

Wire range : 4-6mm2
A.W.G: (12-10)
Maxxu rrent=24A
