ITEM NO.

Nema Tab

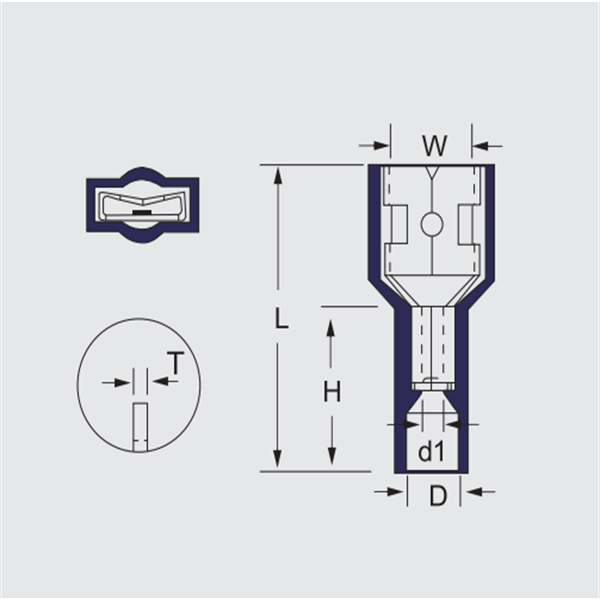

DIMENSION mm

PCS/ PACK

COLOR

EXPLANATION

W

L

H

d1

D

T

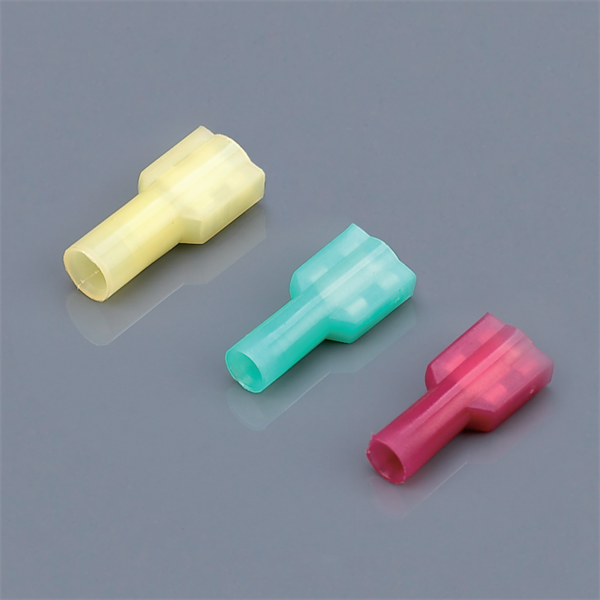

FDFNY1.25-250

0.8X6.35

6.6

22.0

11.0

1.7

4.0

0.4

100

.Red

Wire range : 0.5-1.5mm2 A.W.G : (22-16) Max.current=10A

FDFNY2-250

0.8X6.35

6.6

22.0

11.0

2.3

4.5

0.4

100

. Blue

Wire range : 1.5-2.5mm2 A.W.G : (16-14) Max.current=15A

FDFNY5.5-250

0.8X6.35

6.6

24.5

12.0

3.4

5.5

0.4

100

. Yellow

Wire range : 4-6mm2
A.W.G : (12-10) Max.current=24A
