Nylon-Fully Insulated Female Quick Disconnects
Share This Product:
  • Description
  • Maximum electrical rating: 105C, 300V
  • Insulation: Nylon
  • Terminal Body: Brass
  • Plating: Tin

ITEM NO.

Nema Tab

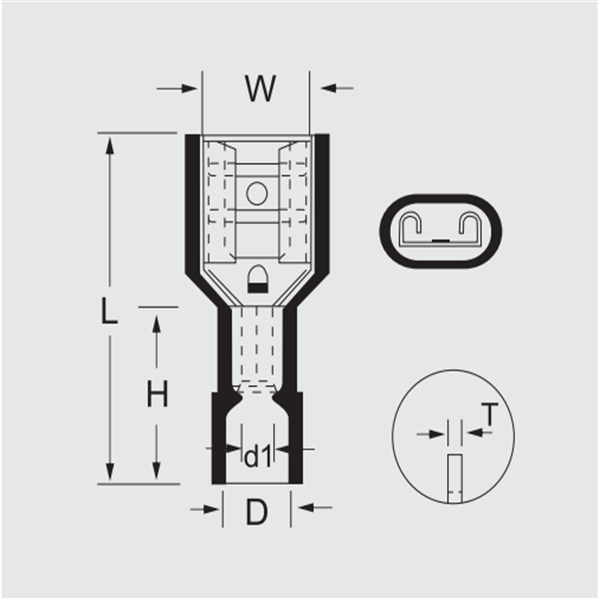

DIMENSION mm

PCS/ PACK

COLOR

EXPLANATION

W

L

H

d1

D

T

FDFN1.25-187(5)

0.5X4.75

5.8

20.2

11.0

1.7

4.0

0.35

100

• Red

Wire range : 0.5-1.5mm

A.W.G : (22-16)

Max.current=10A

FDFN1.25-187(8)

0.8X4.75

FDFN1.25-250

0.8X6.35

7.5

22.0

11.0

1.7

4.0

0.4

FDFN2-187(5)

0.5X4.75

5.8

20.2

11.0

2.3

4.5

0.35

100

• Blue

Wire range : 1.5-2.5mm

A.W.G : (16-14)

Max.current=15A

FDFN2-187(8)

0.8X4.75

FDFN2-250

0.8X6.35

7.5

22.0

11.0

2.3

4.5

0.4

FDFN5.5-250

0.8X6.35

7.5

24.0

13.0

3.4

6.3

0.4

100

• Yellow

Wire range : 4-6mm2
A.W.G : (12-10)

Max.current=24A
