Non-Insulated Locking Spade Terminals

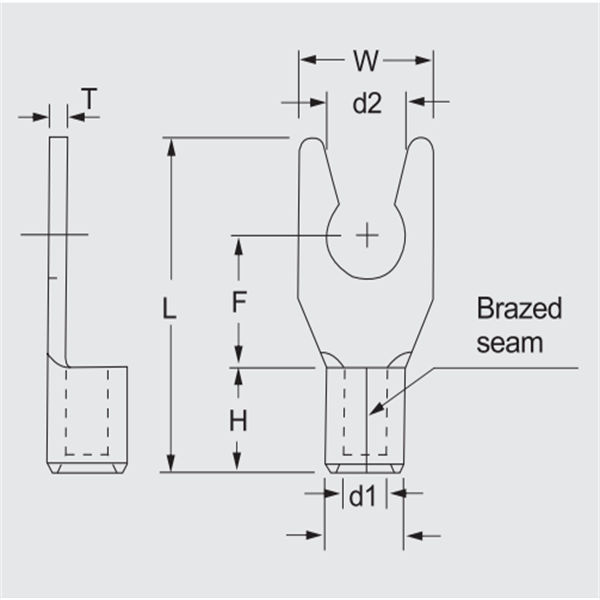

| ITEM NO. | STUD SIZE | DIMENSION mm | PCS/ PACK | EXPLANATION | ||||||||
| Metric | American | d2 | W | F | L | H | d1 | D | T | |||
| LSNB1.25-4 | 4 | #8 | 4.3 | 7.2 | 6.5 | 16.0 | 4.8 | 1.7 | 3.4 | 0.8 | 100 |
Wire range : 0.5-1.5mm2 A.W.G.: (22-16) Max.current=19A |
| LSNB1.25-5S | 5 | #10 | 5.3 | 8.1 | ||||||||
| LSNB2-3.5 | 3.5 | #6 | 3.7 | 6.0 | 6.5 | 16.0 | 4.8 | 2.3 | 4.0 | 0.8 | 100 |
Wire range : 1.5-2.5mm2 A.W.G. : (16-14) Max.current=27A |
| LSNB2-4 | 4 | #8 | 4.3 | 7.2 | ||||||||
| LSNB2-5 | 5 | #10 | 5.3 | 8.1 | ||||||||
| LSNB5.5-4 | 4 | #8 | 4.3 | 8.3 | 7.0 | 18.5 | 6.0 | 3.4 | 5.5 | 1.0 | 100 |
Wire range : 4-6mm2 A.W.G.: (12-10) Max.current=48A |
| LSNB5.5-5 | 5 | #10 | 5.3 | 9.0 | ||||||||
| LSNB5.5-6 | 6 | 1/4" | 6.5 | 12.0 | 12.0 | 24.7 | ||||||
