- Maximum Electrical Rating : 600 Volts
- ShrinkTemp 150°C Operating Temp -10°C~105°C
- Terminal Material: Copper
- Brazed Seam
- Plating: Electro Tin Plated
- Insulated Material: Heat Shrinkable Tube
Insulated Heat Shrinkable Spade Terminals
Insulated Heat Shrinkable Spade Terminals
- 13868749788
- sales@cnhowder.com
- +86-577-62718729
- 13868749788

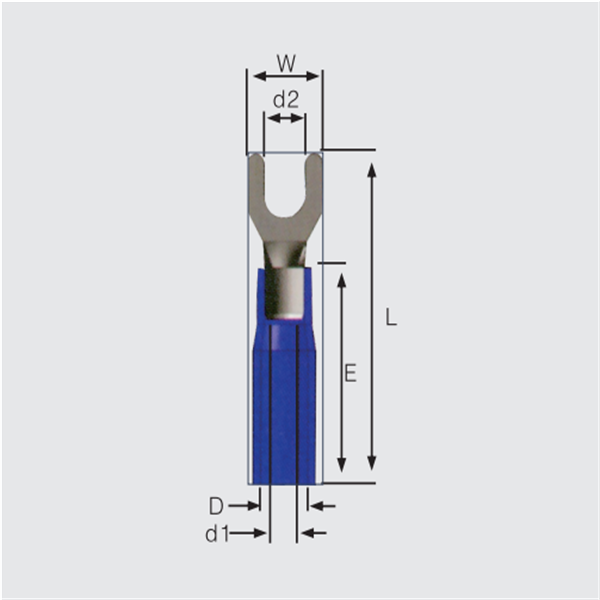

| ITEM NO. | STUD SIZE | DIMENSION mm | PCS/ PACK | COLOR | EXPLANATION | |||||||
| Metric | American | d2 | W | L | H | d1 | D | T | ||||
| S1-5SBH | 5 | #10 | 5.3 | 8.1 | 25.5 | 18.5 | 1.7 | 4.5 | 0.8 | 100 | • Red | Wire range : 0.5-1.5mm2 A. W. G,: (22-16) Max.current=19A |
| S1-6SBH | 6 | 1/4" | 6.5 | 9.5 | 29.5 | 18.5 | 1.7 | 4.5 | 0.8 | |||
| S2-4LBH | 4 | #8 | 4.3 | 8.1 | 27.5 | 20.5 | 2.3 | 5.5 | 0.8 | • Blue | Wire range : 1.5-2.5mm2 A.W.G.: (16-14) Max.current=27A | |
| S2-5LBH | 5 | #10 | 5.3 | 9.5 | 28.5 | 20.5 | 2.3 | 5.5 | 0.8 | |||
| S5-4LBH | 4 | #8 | 4.3 | 9.0 | 32.5 | 23.5 | 3.4 | 6.5 | 1.0 | • Yellow | Wire range : 4-6mm2 A.W.G.: (12-10) Max.current=48A | |
| S5-5BH | 5 | #10 | 5.3 | 9.0 | 32.5 | 23.5 | 3.4 | 6.5 | 1.0 | |||
| S5-6LBH | 6 | 1/4" | 6.5 | 9.0 | 32.5 | 23.5 | 3.4 | 6.5 | 1.0 | |||
