H-E Type Terminal Block (VDE Standard) (12 Pole)
Share This Product:
  • DESCRIPTION
  • Material:
  • Insert: brass
  • Plastic: PE, PP or PA
  • Technical Data:
  • Max. Operating temperature: -5°C~+85,C for PE -30°C~+110,C for RA(VDE)
  • According to:EN60998-1 EN60998-2-1
  • Color: Natural, White

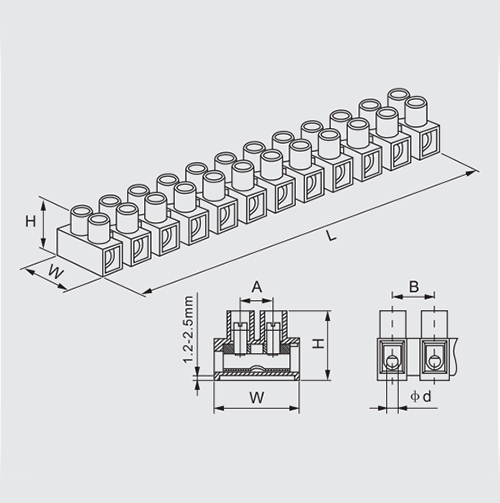

ITEM NO.

RATED CURRENT(A)

SECTION SIZE (mm2)

L (mm)

W (mm)

H (mm)

A (mm)

B (mm)

φd (mm)

H-E8

17.5

1.5

95.37

16.9

15.05

6.3

8.2

2.9

H-E10

24

2.5

117

20.5

16.8

9.6

10.1

3.2

H-E12

41

6

140.1

23.9

18.8

10

12.2

4.2

H-E14

57

10

158

25.7

25.15

10.75

13.6

5
