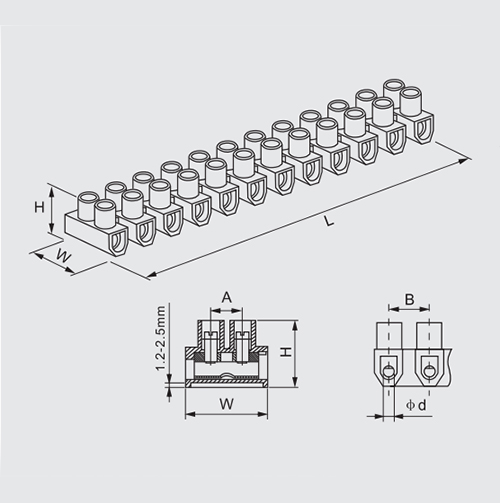

F(V) Type Terminal Block (12 Pole)
|
ITEM NO. |
RATED CURRENT(A) |
SECTION SIZE (mm2) |
L (mm) |
W (mm) |
H (mm) |
A (mm) |
B (mm) |
φd (mm) |
|
F-3 |
3 |
2.5/4 |
91.25 |
15.7 |
13.5 |
5.7 |
8 |
3.2 |
|
F-5 |
5 |
6 |
109.35 |
16.9 |
14.5 |
6.5 |
9.21 |
3.3 |
|
F-10 |
10 |
10 |
126.2 |
20.25 |
15.8 |
8.25 |
10.6 |
3.85 |
|
F-15 |
15 |
12 |
135 |
22.6 |
17.6 |
8.3 |
11.9 |
4.3 |
|
F-30 |
30 |
16 |
156 |
25.65 |
20.5 |
9.1 |
13.1 |
5.5 |
|
F-60 |
60 |
25 |
189 |
29.9 |
25.6 |
13.0 |
15.8 |
6.6 |
|
F-80 |
80 |
30 |
205 |
36.1 |
29.9 |
14.2 |
17.2 |
7.3 |
