- Technical Data:
- Maximum operating temperature: +85*C
- Heat resistance: +130sC
- Building according to standards: EN60998-1, EN60998-2-1
- Materials:
- Insert: Brass
- Insulating body: Polycarbonate

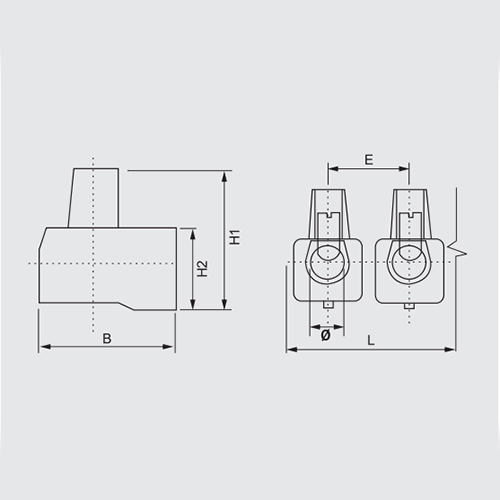

C Type Terminal Block(10 Pole)
|
ITEM NO. |
SECTION SIZE (mm2) |
L (mm) |
B (mm) |
H1 (mm) |
H2 (mm) |
E (mm) |
φ (mm) |
|
C22 |
2.5 |
120 |
18 |
19 |
11 |
12 |
4.16 |
|
C23 |
4 |
121 |
20 |
18 |
10 |
12 |
4.76 |
|
C24 |
6 |
145 |
22 |
23 |
12 |
14.5 |
5.83 |
|
C25 |
10 |
169 |
25 |
26 |
17 |
17.5 |
7.58 |
|
C26 |
16 |
212 |
32 |
33 |
20 |
21 |
10.18 |
