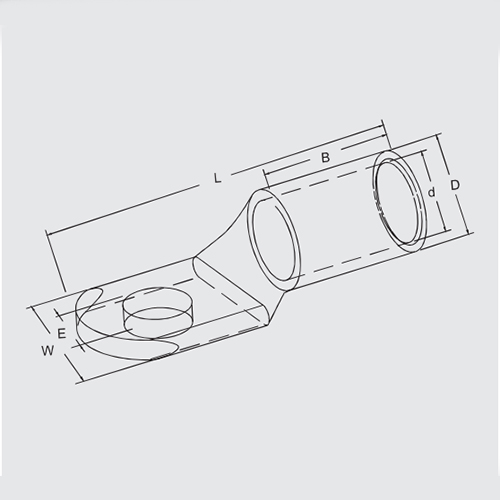

ITEM NO. |
φd(mm) |
φE(mm) |
φD(mm) |
W(mm) |
B(mm) |
L(mm) |
|
8#10 |
4.8 |
5.1 |
7.1 |
11.8 |
13.0 |
33.3 |
|
8*1/4 |
6.8 |
11.8 |
33.3 |
|||
|
8*5/16 |
8.3 |
11.8 |
33.3 |
|||
|
8*3/8 |
10.4 |
14.5 |
33.3 |
|||
|
8*1/2 |
13.1 |
17.0 |
33.3 |
|||
|
6#10 |
5.9 |
5.1 |
8.1 |
11.8 |
15.0 |
37.3 |
|
6*1/4 |
6.8 |
13.7 |
37.3 |
|||
|
6*5/16 |
8.3 |
13.7 |
37.3 |
|||
|
6*3/8 |
10.4 |
13.7 |
37.3 |
|||
|
6*1/2 |
13.1 |
|
17.0 |
14.0 |
37.3 |
|
|
4*1/4 |
7.3 |
6.8 |
9.5 |
13.8 |
15.5 |
38.9 |
|
4*5/16 |
8.3 |
13.8 |
38.9 |
|||
|
4*3/8 |
10.4 |
14.5 |
38.9 |
|||
|
4*1/2 |
13.1 |
|
17.0 |
15.0 |
38.9 |
|
|
2*1/4 |
8.5 |
6.8 |
11.1 |
16.5 |
16.0 |
41.1 |
|
2*5/16 |
83 |
16.5 |
41.1 |
|||
|
2*3/8 |
10.4 |
16.5 |
41.1 |
|||
|
2*1/2 |
13.1 |
|
17.0 |
15.3 |
41.1 |
|
|
1*1/4 |
9.1 |
6.8 |
11.7 |
16.4 |
16.0 |
43.6 |
|
1*5/16 |
8.3 |
16.4 |
43.6 |
|||
|
1*3/8 |
10.4 |
17.1 |
43.6 |
|||
|
1*1/2 |
13.1 |
19.1 |
43.6 |
|||
|
1/0 1/4 |
10.4 |
6.8 |
13.0 |
18.4 |
19.0 |
46.8 |
|
1/0 5/16 |
83 |
18.4 |
46.8 |
|||
|
1/0 3/8 |
10.4 |
18.4 |
46.8 |
|||
|
1/0 1/2 |
13.1 |
21.0 |
46.8 |
|||
|
2/0 1/4 |
11.7 |
6.8 |
14.2 |
21.0 |
22.0 |
52.4 |
|
2/0 5/16 |
8.3 |
21.0 |
52.4 |
|||
|
2/0 3/8 |
10.4 |
21.0 |
52.4 |
|||
|
2/0 1/2 |
13.1 |
|
21.0 |
21.0 |
52.4 |
|
|
3/0 5/16 |
13.0 |
8.3 |
15.7 |
23.1 |
22.5 |
55.9 |
|
3/0 3/8 |
10.4 |
23.1 |
55.9 |
|||
|
3/0 1/2 |
13.1 |
23.1 |
55.9 |
|||
|
4/0 5/16 |
14.2 |
8.3 |
17.2 |
25.8 |
24.0 |
60.5 |
|
4/0 3/8 |
10.4 |
25.8 |
60.5 |
|||
|
4/0 1/2 |
13.1 |
25.8 |
60.5 |
